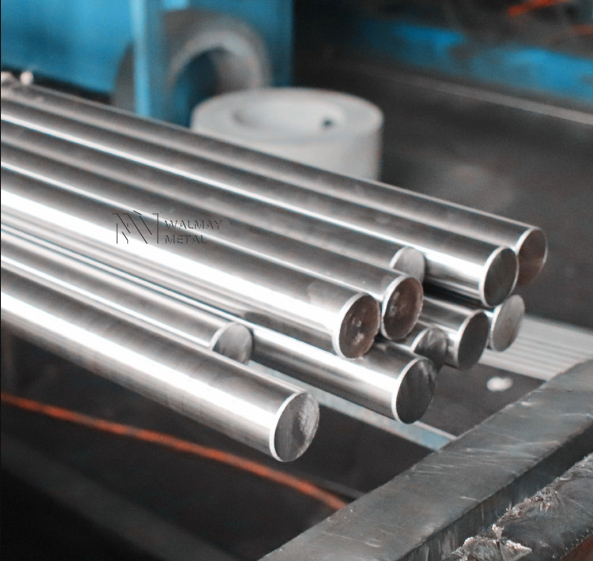

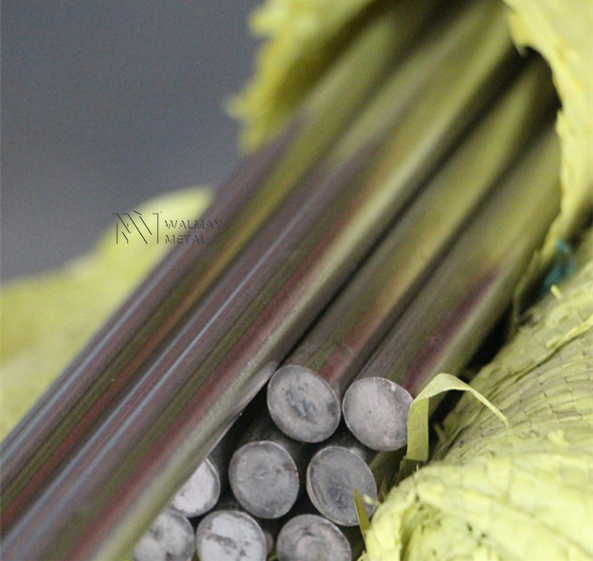

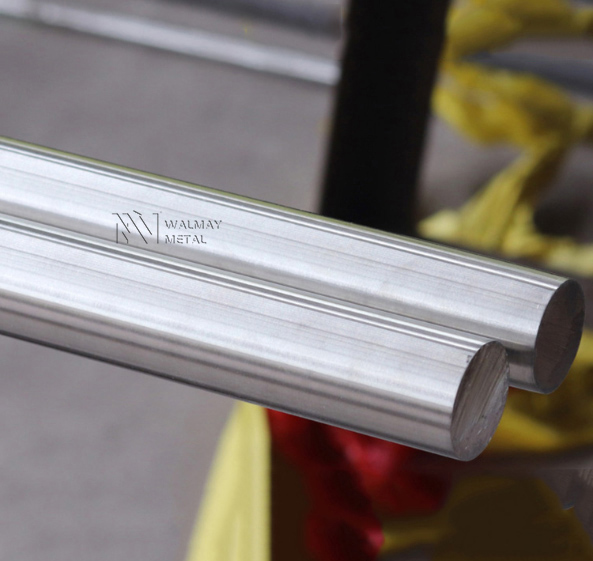

Molybdenum-Alloy Corrosion-Resistant Machining Bar, Specifically for Marine Fittings, Chemical Pump Valves, and Precision Components in Highly Corrosive Environments
| Element | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr | Ni | Mo | N≤ |
|---|---|---|---|---|---|---|---|---|---|
| Content (%) | 0.08 | 1 | 2 | 0.045 | 0.03 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | 0.1 |
| Property | Annealed Range | Standard | 316 Plate/Pipe Reference |
|---|---|---|---|
| Density | 7.98 g/cm³ | GB/T 7999 | 7.98 g/cm³ |
| Melting Point | 1375–1450℃ | - | 1375–1450℃ |
| Tensile Strength | ≥520 MPa | GB/T 228.1-2021 | ≥520 MPa |
| Yield Strength | ≥205 MPa | GB/T 228.1-2021 | ≥205 MPa |
| Elongation | ≥40% | GB/T 228.1-2021 | ≥40% |
| Hardness (HB) | ≤187 | GB/T 231.1-2009 | ≤187 |
| Torsional Strength | ≥300 MPa | GB/T 10128 | N/A |
| Process | Diameter (mm) | Length (m) | Surface Finish | Tolerance |
|---|---|---|---|---|
| Hot Rolled | Φ10–200 | 4–6 | Black (NO.1, Ra≤50μm) | ±0.1mm |
| Cold Drawn | Φ5–50 | 3–6 | Bright (Ra≤1.6μm) | ±0.05mm |
Customization:
Supports grinding (Ra≤0.8μm), chamfering (45°/60°), and fixed-length cutting (min 0.5m). Bars over Φ200mm available within 7 days.
Stainless Steel Plate Bending/Stamping Process
Stainless Steel Plates on Storage Rack
Palletized Stainless Steel Plates
Stainless Steel Plate Rolling Line
Precision Thickness Inspection of Stainless Steel Plate
Forklift Loading Stainless Steel Plates for Shipment
Spec: Φ20mm × 6000mm
Case: CNC lathe spindle shafts using 316 bright bar are widely used in machinery manufacturing workshops, delivering straightness ≤1 mm/m and machining precision up to IT7 while providing up to three times longer service life than carbon steel shafts.
Spec: Φ50mm × 4000mm
Case: Used in marine aquaculture frame supports installed in shipbuilding yards, passivated 316 black bars demonstrated excellent corrosion resistance and maintained structural stability in seawater environments for more than five years.
Spec: Φ10mm × 3000mm
Case: Reactor bolts made from 316 cold-drawn bar are commonly applied in chemical production workshops</a>, achieving a 98% thread yield rate while maintaining strong resistance to acid and alkali corrosion.
Spec: Φ15mm × 3000mm
Case: Surgical handle rods manufactured from precision-polished 316 stainless steel bars are widely used in medical device manufacturing workshops, featuring surface roughness Ra ≤0.8 μm for easy sterilization and compliance with GB 4806.9-2016 food-contact standards.
Walmay will help match the right stainless product form and specification for your application, confirm quantities and packing needs, and provide requested documents based on order requirements.
