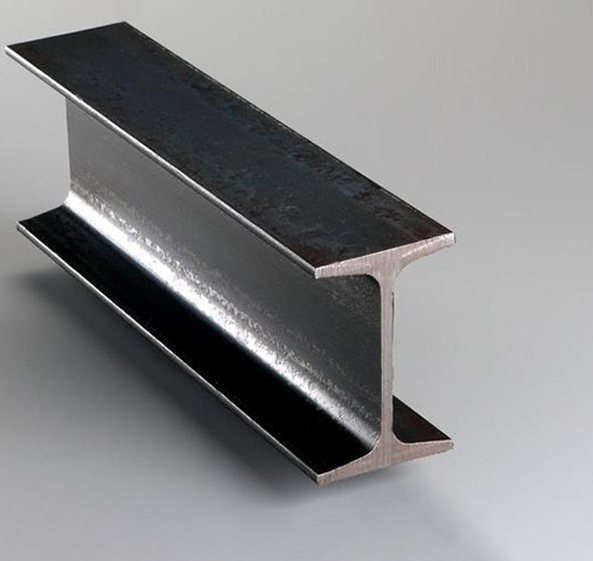

2205 Duplex Steel I-Beam (standard GB/T 706-2016, 022Cr23Ni5Mo3N) consists of 50% austenite + 50% ferrite, with a yield strength ≥450 MPa (twice that of 304 stainless steel) and a PREN value ≥40.
| Element | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Cr | Ni | Mo | N |
|---|---|---|---|---|---|---|---|---|---|
| Content % | 0.03 | 1 | 2 | 0.035 | 0.03 | 22.0–23.0 | 4.5–6.5 | 3.0–3.5 | 0.08–0.20 |
Physical Properties: Density 7.8 g/cm³, melting point 1300–1390 °C, thermal conductivity 25 W/(m·K) (20 °C).
Mechanical Properties (Annealed): Tensile strength ≥620 MPa, yield strength ≥450 MPa, elongation ≥25%, hardness ≤290 HB.
Chemical Properties: No pitting in 3.5% NaCl solution; 50% higher resistance to crevice corrosion than 316L.
Reference cross-section sizes (GB/T 706-2016):
| Model (h×b×d) | Height h (mm) | Flange Width b (mm) | Web Thickness d (mm) | Theoretical Weight (kg/m) |
|---|---|---|---|---|
| I16# | 160 | 88 | 6 | 20.513 |
| I25a# | 250 | 116 | 8 | 38.105 |
| I40a# | 400 | 142 | 10.5 | 67.598 |
Length: Custom 6–12 m, standard tolerance ±5 mm, minimum order 200 kg.
Surface: Hot-rolled pickled, passivated (enhanced corrosion resistance).
Stainless Steel Profiles on Storage Racks
Spectrometer for Alloy Composition Analysis

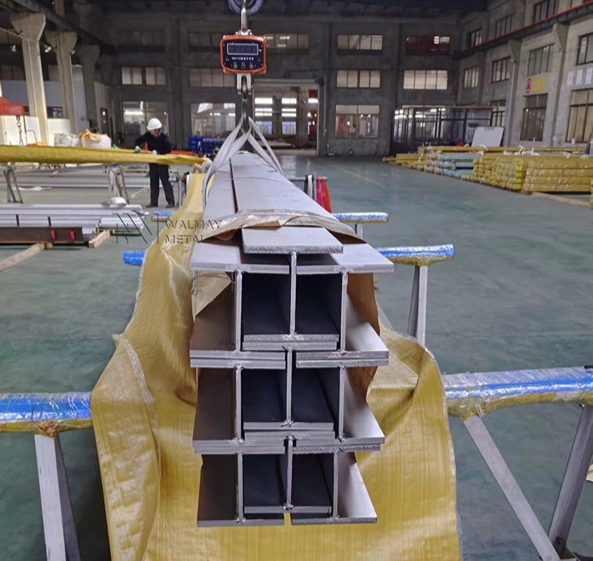

Profile Weighing with Crane Scale

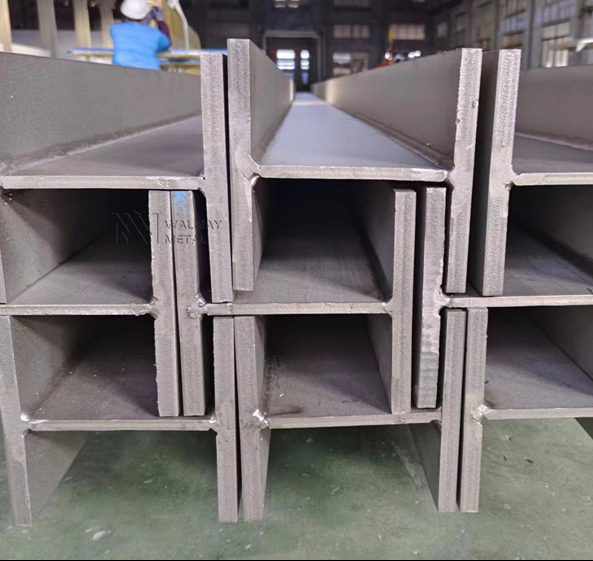

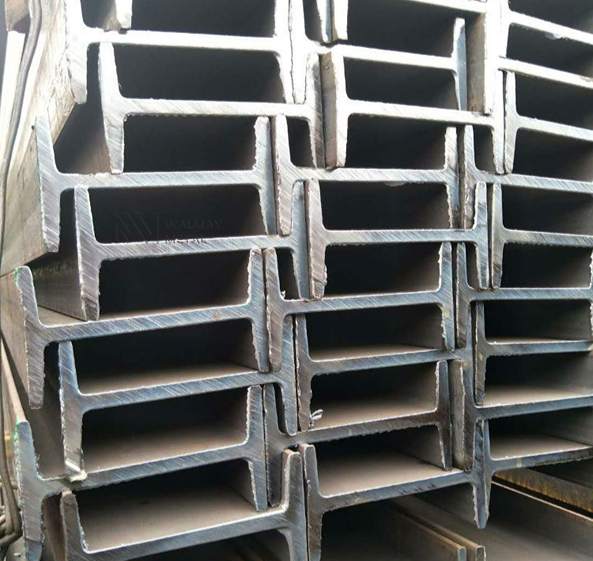

Factory Stacking of Stainless Steel Profiles
Packaged Stainless Steel Profiles for Shipment
Worker Loading Profiles onto Truck
Stainless steel I-beams used as structural supports for petroleum cracking units commonly installed in chemical production workshops, providing reliable resistance to high-pressure environments up to 10 MPa and corrosion from H₂S-containing gases.
Stainless steel I-beams applied as deck support structures for drilling platforms commonly built in shipbuilding yards, offering strong resistance to seawater corrosion and wave impact with service life exceeding 15 years.
Walmay will help match the right stainless product form and specification for your application, confirm quantities and packing needs, and provide requested documents based on order requirements.
