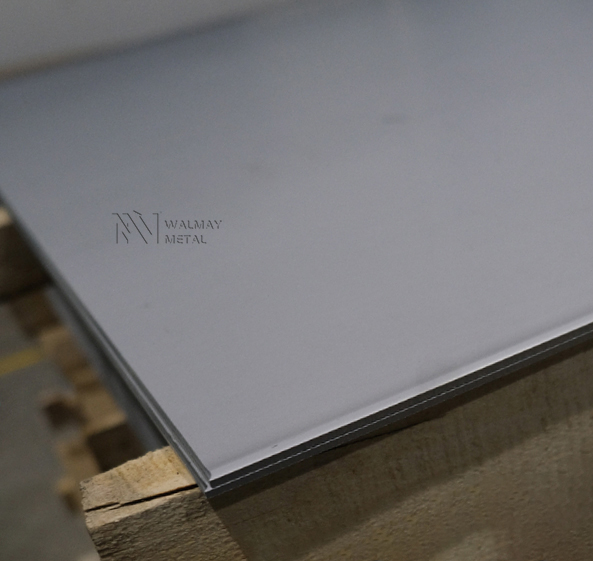

Are you looking for high-quality 304 stainless steel plates? We provide ASTM A240 compliant 304 plates in various thicknesses, including 3mm, 6mm, and custom sizes for industrial applications. Whether you need cold-rolled 2B finish or hot-rolled No.1 plate, our stock is ready for quick export.
| Element | Content (%) | Functional Role |
|---|---|---|
| C (Carbon) | ≤0.07 | Low-carbon design reduces risk of intergranular corrosion during welding, meeting food-contact welding requirements. |
| Cr (Chromium) | 17.0–19.0 | Forms Cr₂O₃ passive film to resist oxidative corrosion in food processing environments; oxide film repair rate 0.5nm/h. |
| Ni (Nickel) | 8.0–10.0 | Stabilizes austenitic structure; retains ≥85% toughness at -196℃; prevents protein-deposition-induced corrosion. |
| Mn (Manganese) | ≤2.0 | Controls work hardening index n=0.22, improving formability for deep drawing in food equipment (e.g., beverage can molds). |
Physical Properties: Density 7.93g/cm³, melting point 1398–1454℃, tensile strength ≥520MPa, elongation ≥40%, impact energy ≥34J at -20℃.
Chemical Properties: Corrosion rate ≤0.01mm/year in 5% citric acid solution (60℃); pitting potential ≥+300mV in 3000ppm chloride seawater; passivation film electrochemical corrosion current density ≤1μA/cm².
Grade: 304 stainless steel (ASTM A240, UNS S30400).
Plate Thickness Range: 0.1–6.0mm (TISCO ultra-thin from 0.1mm; private mills standard 0.3–3.0mm).
Width: 600–2000mm (cutting precision ±1mm); common widths: 1000mm, 1219mm, 1500mm, 2000mm.
Length: Up to 6000mm, custom cut available (tolerance ±2mm).

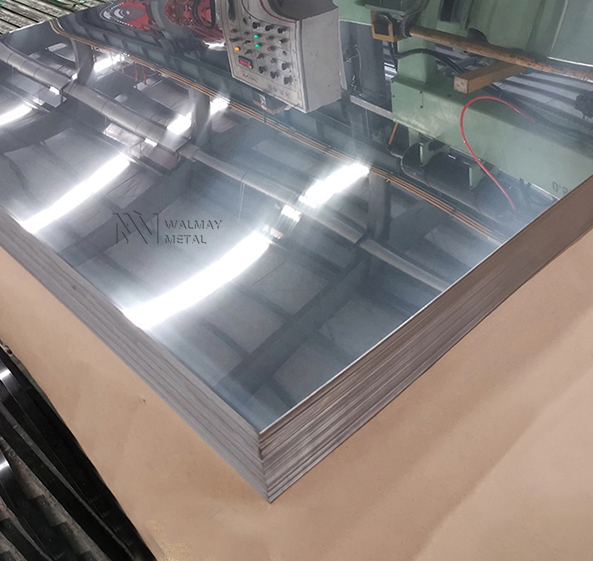

Sheet Surface Finishes: 2B (Ra≤1.6μm), BA (Ra≤0.1μm), 8K mirror (Ra≤0.05μm), HL brushed (Ra≤0.8μm).
Stainless Steel Plate Bending/Stamping Process

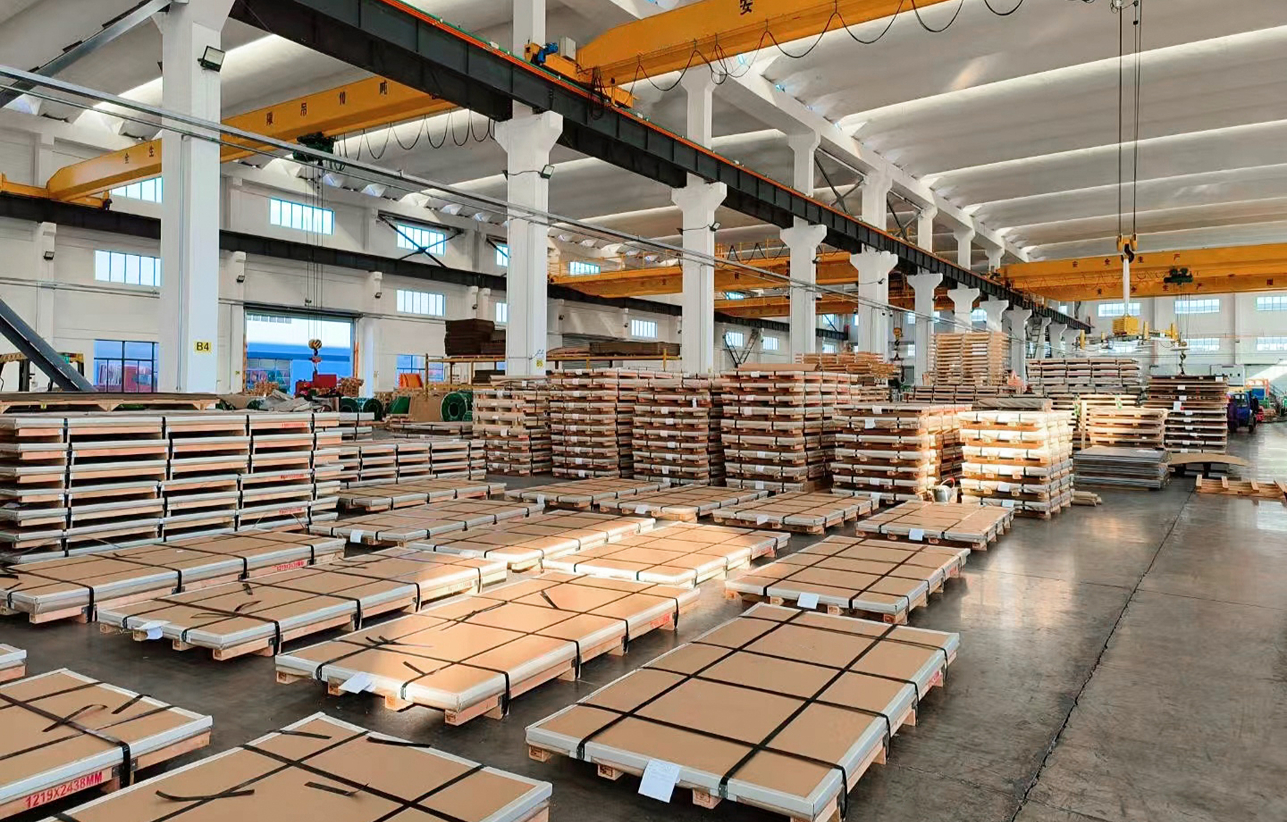

Stainless Steel Plates on Storage Rack

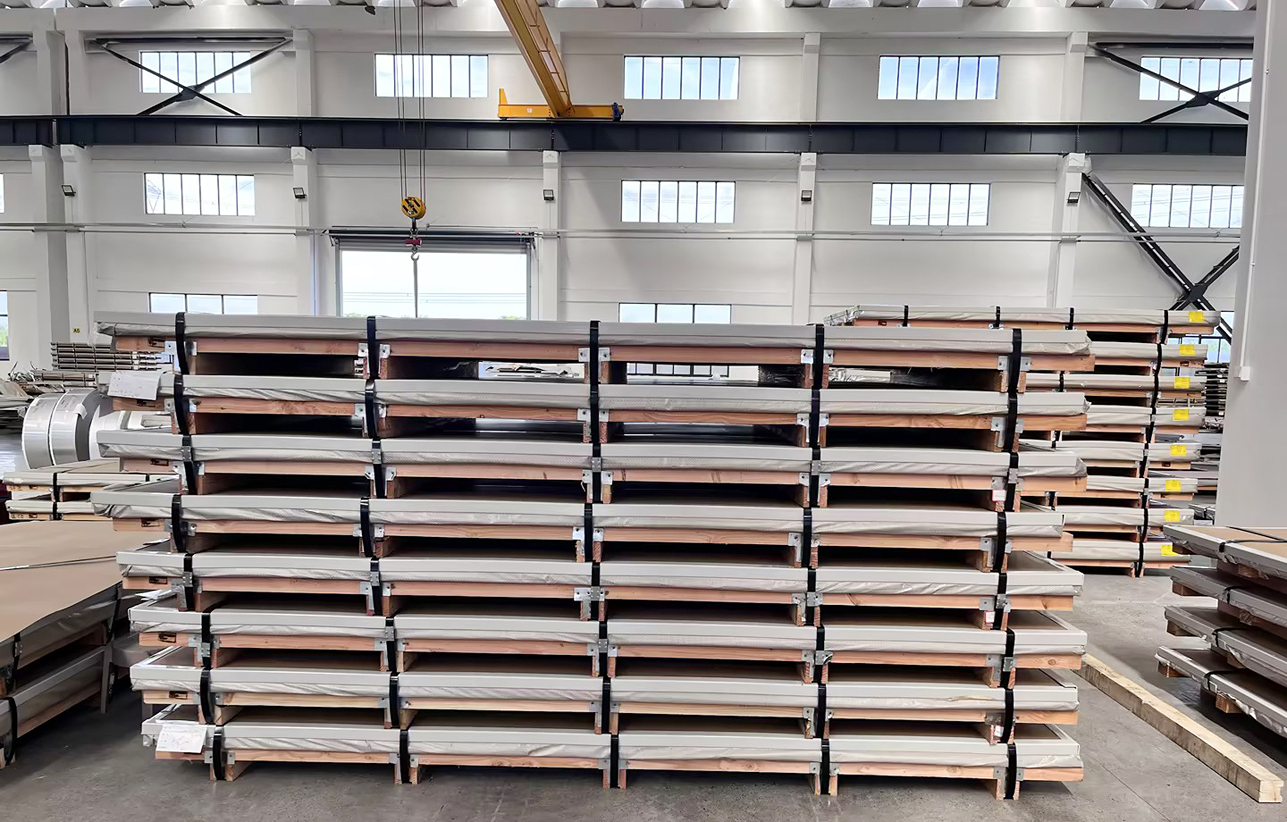

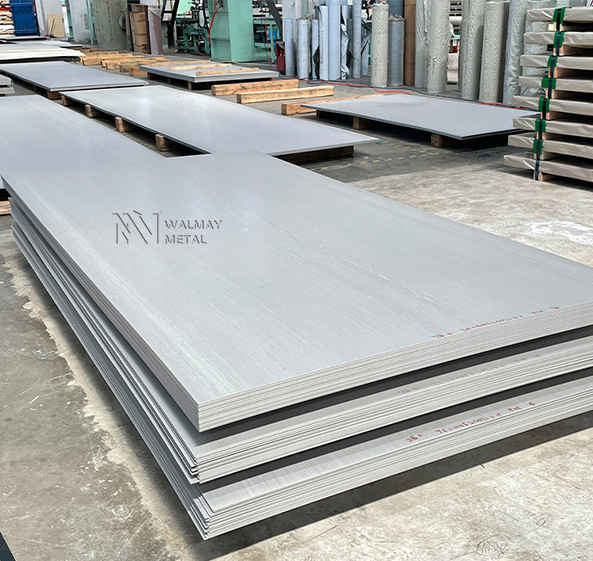

Palletized Stainless Steel Plates

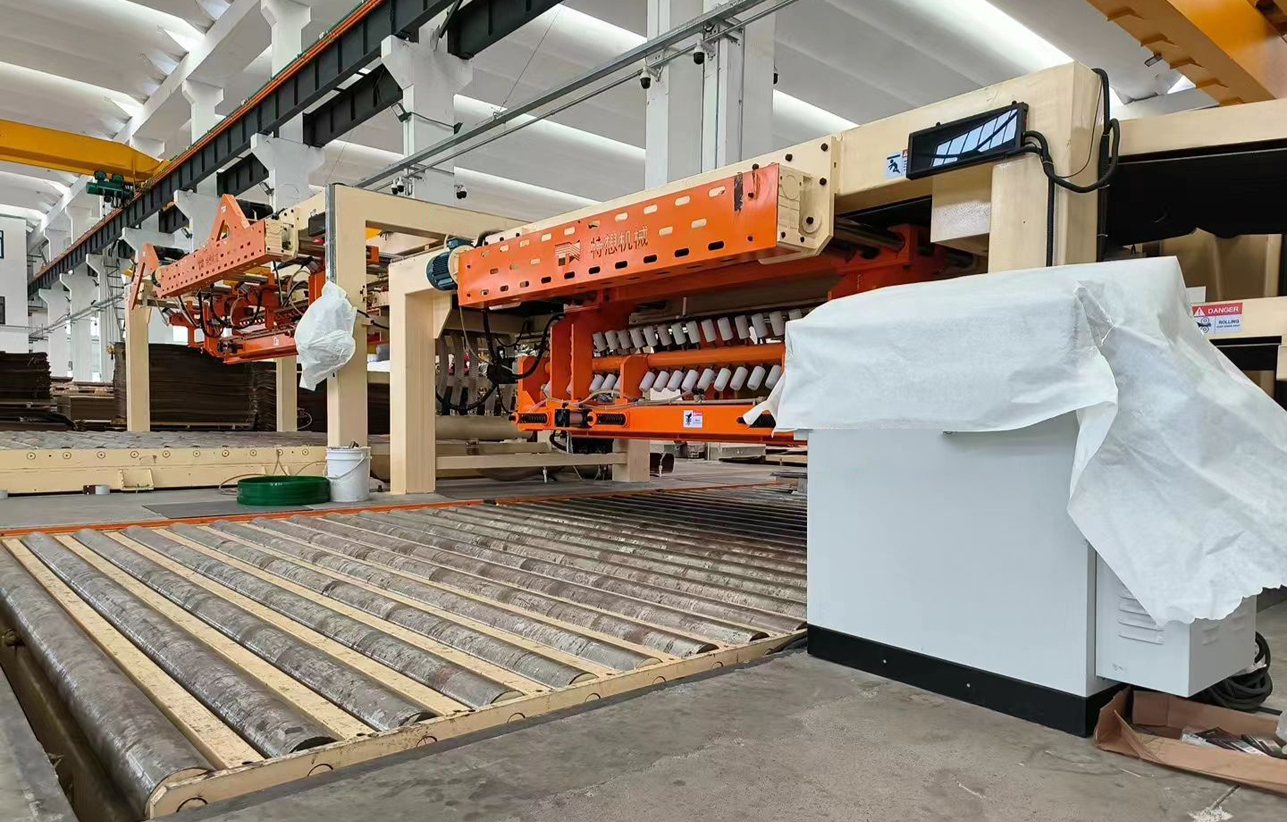

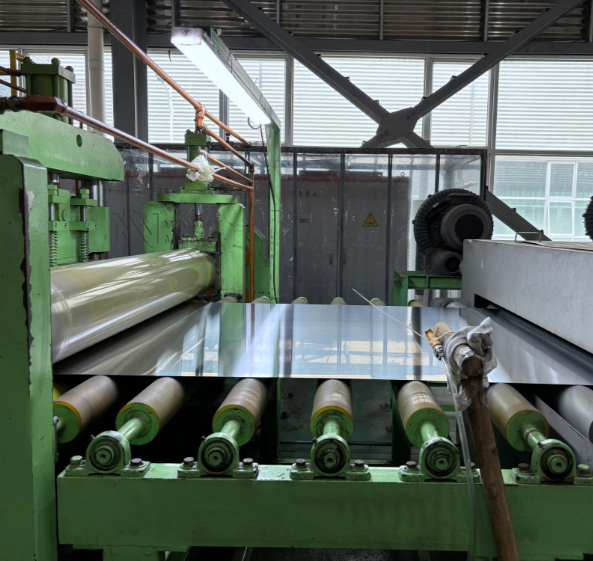

Stainless Steel Plate Rolling Line

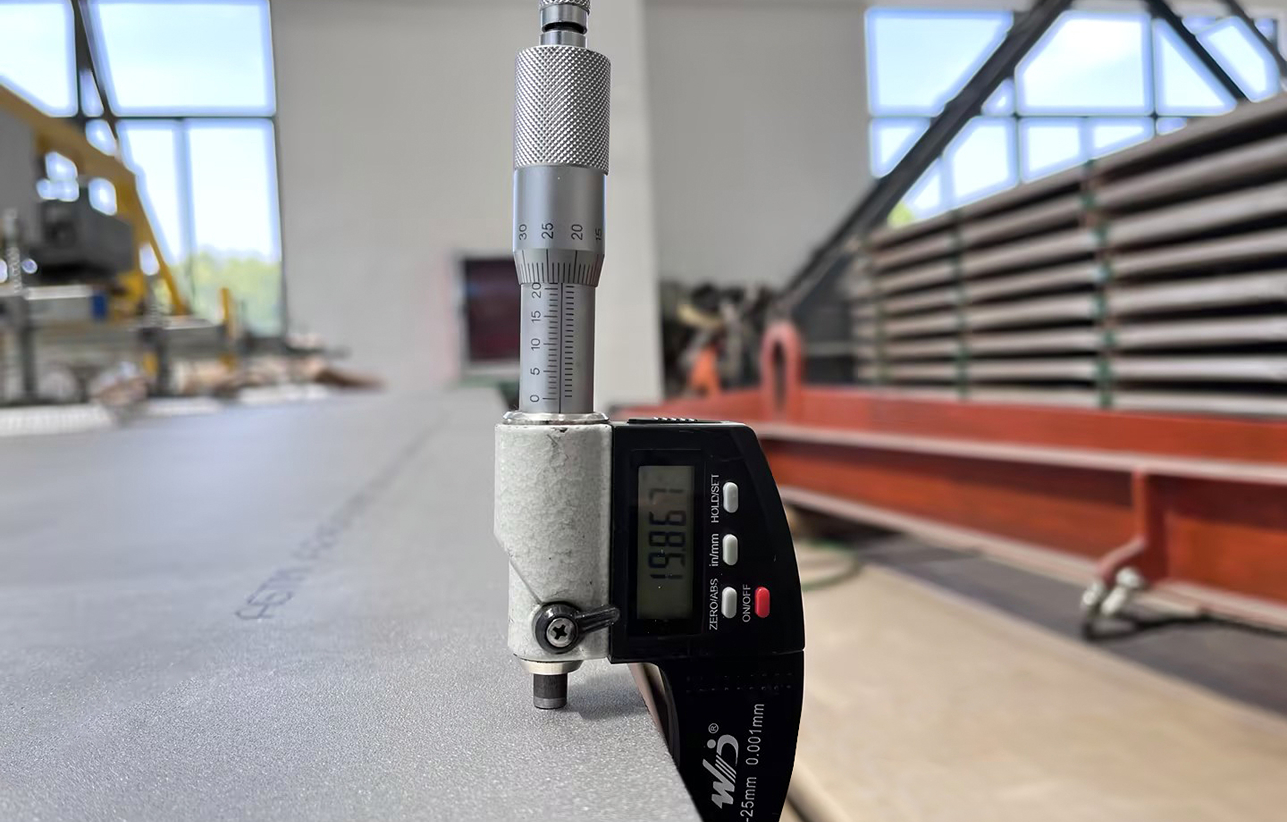

Precision Thickness Inspection of Stainless Steel Plate

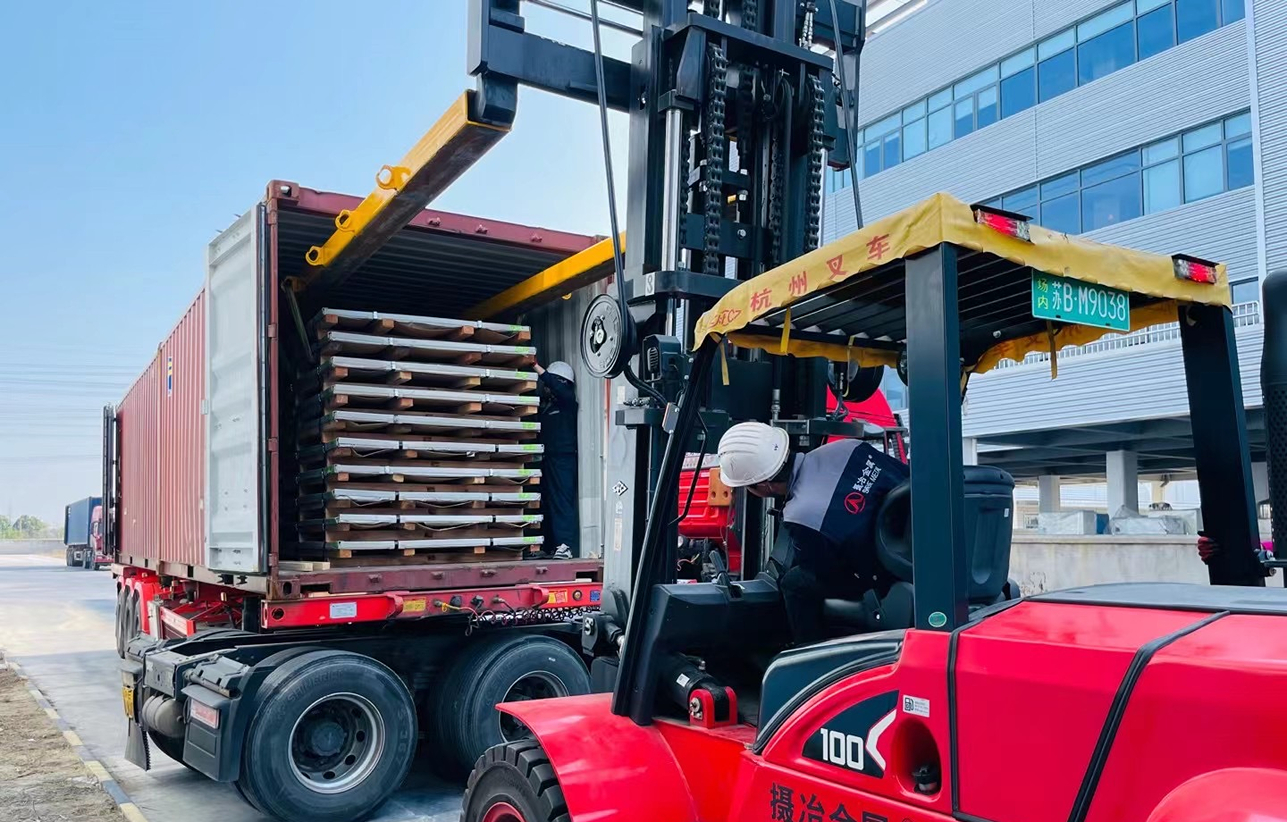

Forklift Loading Stainless Steel Plates for Shipment
Specification: 2.0mm × 1500mm BA plate
Advantage: The passivation film prevents milk scale adhesion, extending the cleaning cycle up to three times.
Case: Yili Dairy fermentation tank lining used in pharmaceutical and food production areas.
Specification: 0.5mm × 1219mm 8K plate
Advantage: The mirror surface reduces dough sticking and improves demolding efficiency by 30%.
Case: SanNeng custom baking molds used in hardware processing facilities.
Specification: 1.2mm × 2000mm HL plate
Advantage: The brushed surface is anti-fingerprint and achieves wear resistance ≥2000 cycles.
Case: Haidilao kitchen engineering used in kitchen workspaces.
Specification: 1.5mm × 1800mm 2B plate
Advantage: Resistant to weak alkaline corrosion, ensuring a service life of more than 10 years.
Case: Nongfu Spring bottling line piping used in pharmaceutical and food production areas.
TISCO uses 20-roll Sendzimir mill with ±0.05 mm tolerance at 1.0 mm; private mills offer cost savings (~15%) with ±0.1 mm tolerance.
Acid pickling + passivation to enhance durability.
Salt spray test (ASTM B117), food migration test (GB 4806.9), tensile and impact test reports provided with each batch.
Regular thickness (0.5–3.0 mm) ready-stock with MOQ 2 tons; ultra-thin (<0.3 mm) or thick sheets (>4.0 mm) available with 15–20 day lead time.
Full Material Traceability: Every plate comes with a Mill Test Certificate (MTC).
Precision Cutting: We offer water-jet, plasma, and laser cutting services for custom plate shapes.
Precision Cutting: We offer water-jet, plasma, and laser cutting services for custom plate shapes.
Complies with ASTM A240 and 1.4301 standards.Technical support with MTR and testing reports for every order
Walmay will help match the right stainless product form and specification for your application, confirm quantities and packing needs, and provide requested documents based on order requirements.
