PREN — the Pitting Resistance Equivalent Number — is a single calculated value that ranks how well a stainless steel grade will resist pitting and crevice corrosion in chloride environments. The higher the PREN, the better the steel survives saltwater, bleach, brines, and aggressive process fluids. If you remember nothing else: PREN below 25 is for clean indoor service, 25–35 covers most industrial work, 35–40 handles marine splash zones, and 40+ is what you specify when failure is not an option.
PREN isn’t magic. It’s a weighted sum of the three alloying elements that fight pitting corrosion the hardest: chromium, molybdenum, and nitrogen. The standard formula is:
PREN = %Cr + 3.3 × %Mo + 16 × %N
Some references use a coefficient of 30 for nitrogen, especially for duplex grades — that variant is called PREN16 vs PREN30. For tungsten-bearing super duplex grades like Zeron 100, you’ll see PREW = %Cr + 3.3 × (%Mo + 0.5 × %W) + 16 × %N. The coefficients aren’t arbitrary; they come from decades of immersion testing in ferric chloride per ASTM G48.

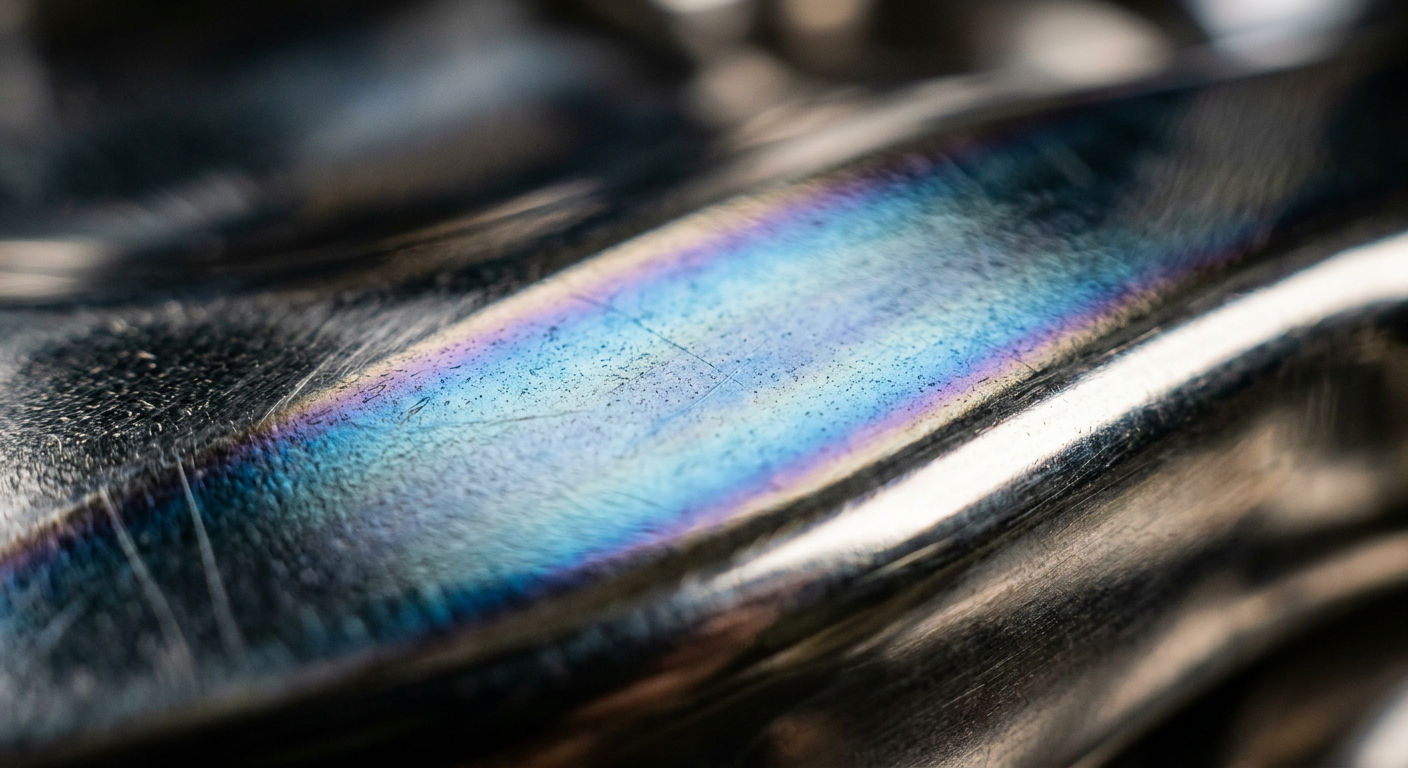

What the math is really saying: chromium builds the passive oxide film, molybdenum stabilizes it against chloride attack, and nitrogen sharpens both effects while also strengthening the austenite phase. Strip any one of those out and the number — and the real-world performance — drops fast.
A number alone is useless without ranges to anchor it. Here’s the working scale most metallurgists keep in their heads:
One caveat: PREN predicts pitting, not stress corrosion cracking, not galvanic issues, not high-temperature oxidation. It’s powerful but narrow.
Let’s run the numbers on two grades buyers compare constantly.
316L typical analysis: 17.0% Cr, 2.1% Mo, 0.05% N.
PREN = 17.0 + (3.3 × 2.1) + (16 × 0.05) = 17.0 + 6.93 + 0.80 = 24.7
2205 duplex typical analysis: 22.5% Cr, 3.2% Mo, 0.17% N.
PREN = 22.5 + (3.3 × 3.2) + (16 × 0.17) = 22.5 + 10.56 + 2.72 = 35.8

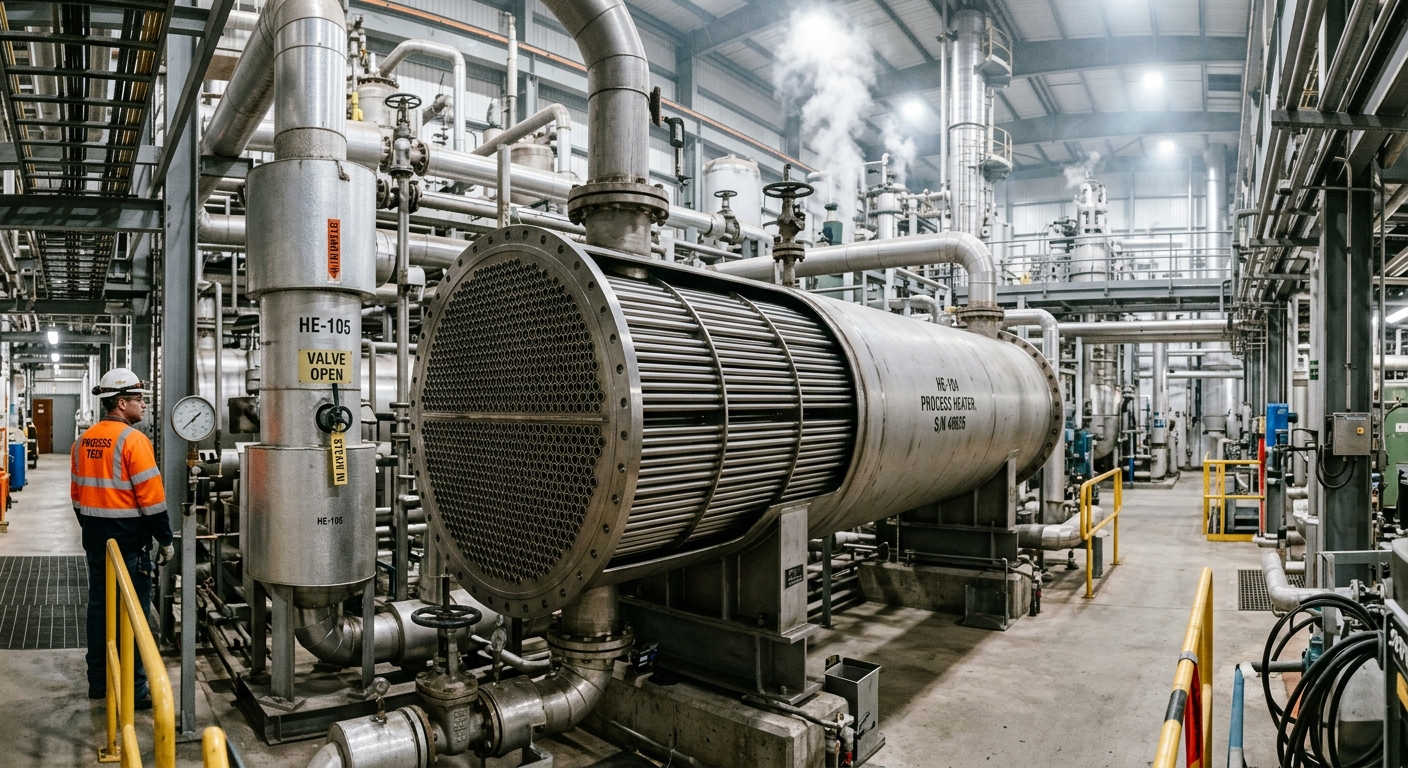

That gap — about 11 PREN points — translates to roughly a 20°C higher critical pitting temperature (CPT) for 2205. In a heat exchanger handling 40°C brackish cooling water, 316L will pit within a year. 2205 will run for a decade. Same engineering problem, different alloy decision, and PREN told you why before you ever ordered a coupon.
Want to see where each grade actually fits across industries? Our overview of stainless steel grades and their applications maps PREN ranges to real specifications.
PREN is a calculation. CPT is a measurement. They correlate well — but they aren’t the same thing.
CPT (per ASTM G150) is the temperature at which pitting initiates in a standardized chloride solution. It’s the gold standard for ranking grades in real chloride service. A 2205 plate with a calculated PREN of 35 might show a measured CPT anywhere from 35°C to 50°C depending on heat treatment, surface finish, and inclusions.
The takeaway: use PREN to screen candidates and write specifications. Use CPT data from the mill test report to validate critical applications. For a seawater pipework project, we’d insist on both — a minimum PREN of 40 written into the PO, plus CPT testing on production heats. Our guide to stainless steel in seawater walks through how to combine these specs in a real procurement document.
PREN is a starting point, not the finish line. Several things can wreck a high-PREN grade in service:

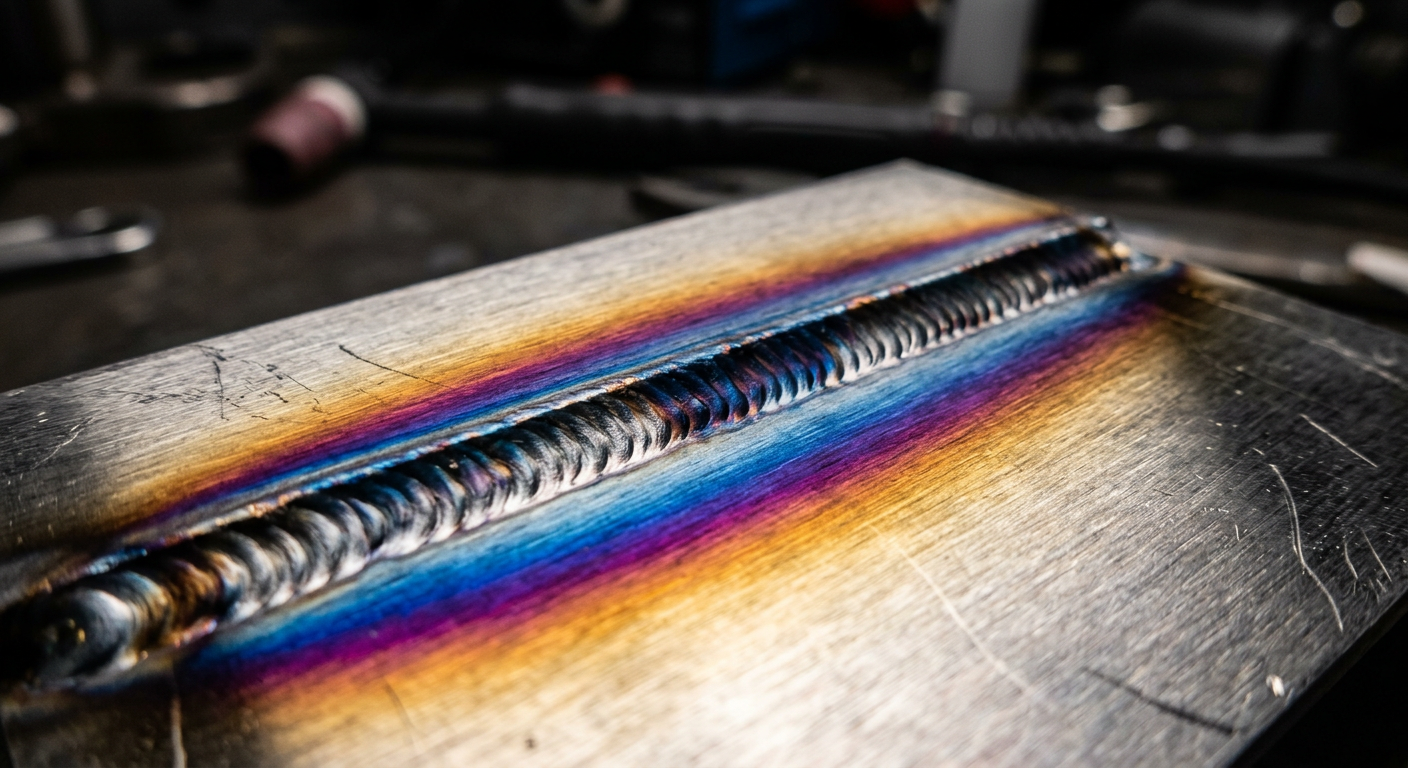

Nitrogen burns out of the heat-affected zone during welding. A 2507 weld with PREN 42 in the parent metal can drop to PREN 36 in the HAZ if the welder uses pure argon instead of an Ar+N₂ shielding mix. Suddenly the weld is the corrosion-limiting feature, not the base metal.
Hold duplex steel between 600–950°C for too long and brittle, chromium-rich sigma phase forms. The Cr in sigma is no longer available to fight pitting. PREN calculation doesn’t see it — your failed component will.
Free iron from grinding wheels, mild steel tooling, or carbon steel scaffolding bolted onto a tank creates pit initiation sites no PREN number can compensate for. We’ve seen stainless tanks rust in pure water because of this. Passivation matters.
Gaskets, lap joints, deposits under biofouling — these create local environments far more aggressive than the bulk solution. Critical crevice temperature (CCT) is typically 15–20°C below CPT.

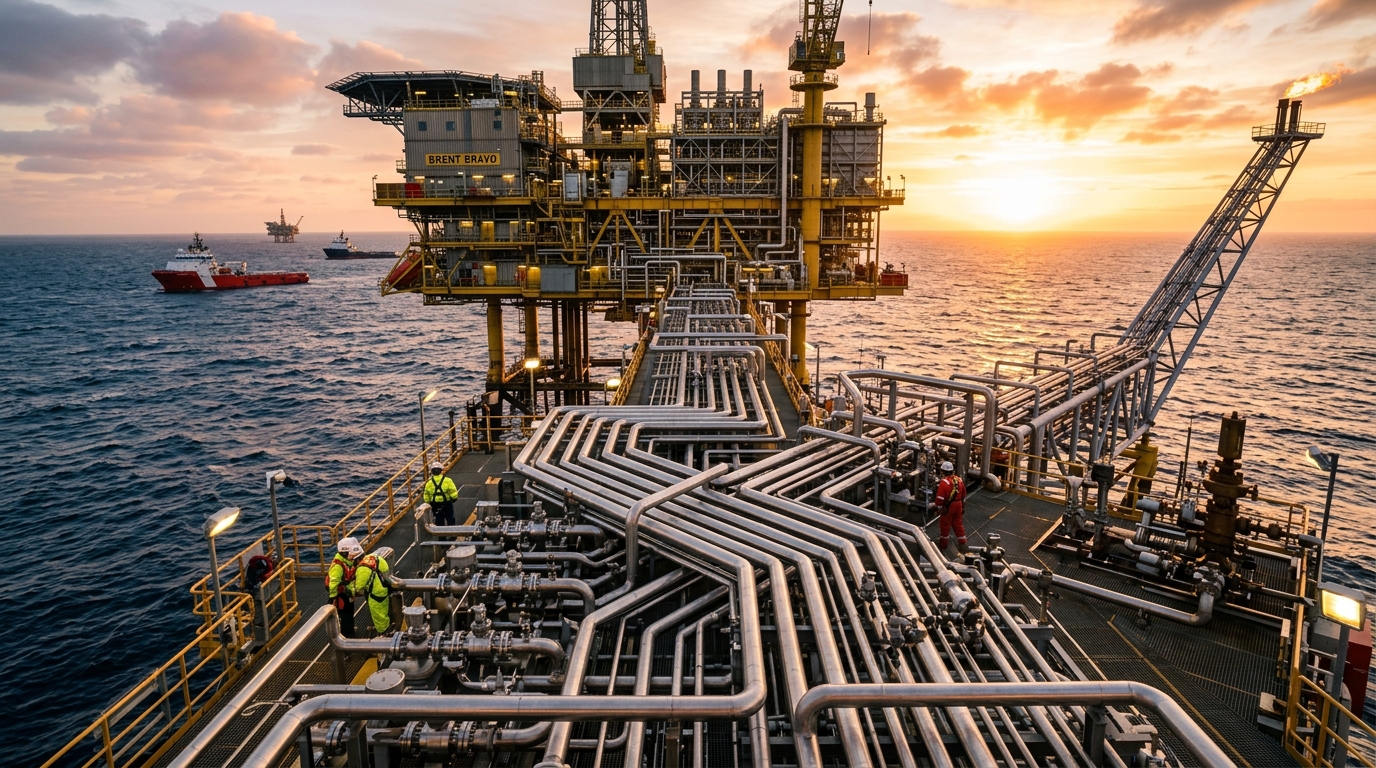

A Southeast Asian operator we worked with originally specified 316L piping for a topside seawater cooling loop. PREN calculation came in at 24.5. The corrosion engineer flagged it — chloride concentration was 19,000 ppm, operating temperature 45°C. That combination sits comfortably above 316L’s safe envelope.
The team ran the numbers on 2205 (PREN ~35) and 2507 (PREN ~42). 2205 was cheaper but borderline given expected upset temperatures of 60°C. 2507 cost about 1.6× more per ton, but the projected service life jumped from 8 years to 25+. Lifecycle math made it obvious. They specified 2507 for the cooling loop and kept 316L for the deluge system where exposure was intermittent.
This kind of grade-by-service zoning is exactly what good PREN literacy unlocks. For more on how stainless behaves — or misbehaves — in real applications, see when stainless steel works and when it doesn’t.
Three practical habits separate sophisticated buyers from the rest:
“ASTM A240 UNS S31803” allows a wide composition window. A heat at the lean end might calculate to PREN 33; a richer heat to PREN 36. For critical service, specify PREN ≥ 35 calculated from actual heat analysis. The mill will comply — but only if you ask.
Take the Cr, Mo, and N values from the MTC and run the formula yourself. It takes 30 seconds and catches more problems than you’d think — including occasional misidentified material.
Super duplex in a dry indoor electrical enclosure is wasted money. 304 with PREN 19 is perfect there. Match the grade to the environment, not to the highest number on the shelf.
Keep this near your desk. Numbers are typical mid-range values — actual heats will vary ±1–2 points.
If you’re choosing between two common grades for a project, our 430 vs 304 guide shows how PREN differences play out in everyday selection decisions.
PREN won’t tell you everything — it won’t predict stress corrosion cracking, weld decay, or galvanic couples — but it’s the single most useful number for narrowing grade choices before deeper analysis. Calculate it from actual heat analysis. Write minimums into your specifications. Combine it with CPT data when stakes are high. And don’t let a high PREN make you complacent about fabrication, passivation, and crevice control.
At Walmay, we supply 304, 316L, 2205, 2507, and 6Mo grades with mill test certificates that report Cr, Mo, and N — so you can verify PREN on every coil and plate before it leaves the warehouse. If you’re scoping a corrosion-critical project and want a second opinion on grade selection, get in touch with our technical team — we’d rather help you specify the right grade once than supply you the wrong one twice.
