2205 Duplex Steel Cold-Rolled Coil (022Cr23Ni5Mo3N), compliant with GB/T 21832-2008, has approximately 50% austenite and 50% ferrite microstructure.
| Element | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Cr | Ni | Mo | N |
|---|---|---|---|---|---|---|---|---|---|
| Content % | 0.03 | 1 | 2 | 0.035 | 0.03 | 22.0–23.0 | 4.5–6.5 | 3.0–3.5 | 0.08–0.20 |
Density: 7.8 g/cm³
Melting Point: 1300–1390 °C
Magnetism: Weak
Mechanical Properties: Tensile strength ≥620 MPa, elongation ≥25%
Thickness: 0.5–4.0 mm (tolerance ±0.06 mm)
Width: 1000 / 1219 mm
Surface: 2B (cold-rolled annealed), customizable passivation
Coil Weight: 3–8 t/coil, made-to-order

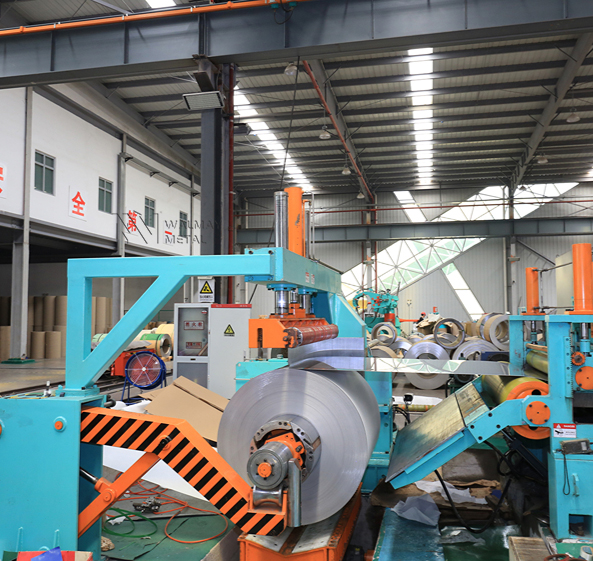

Coil Feeding into Processing Machine

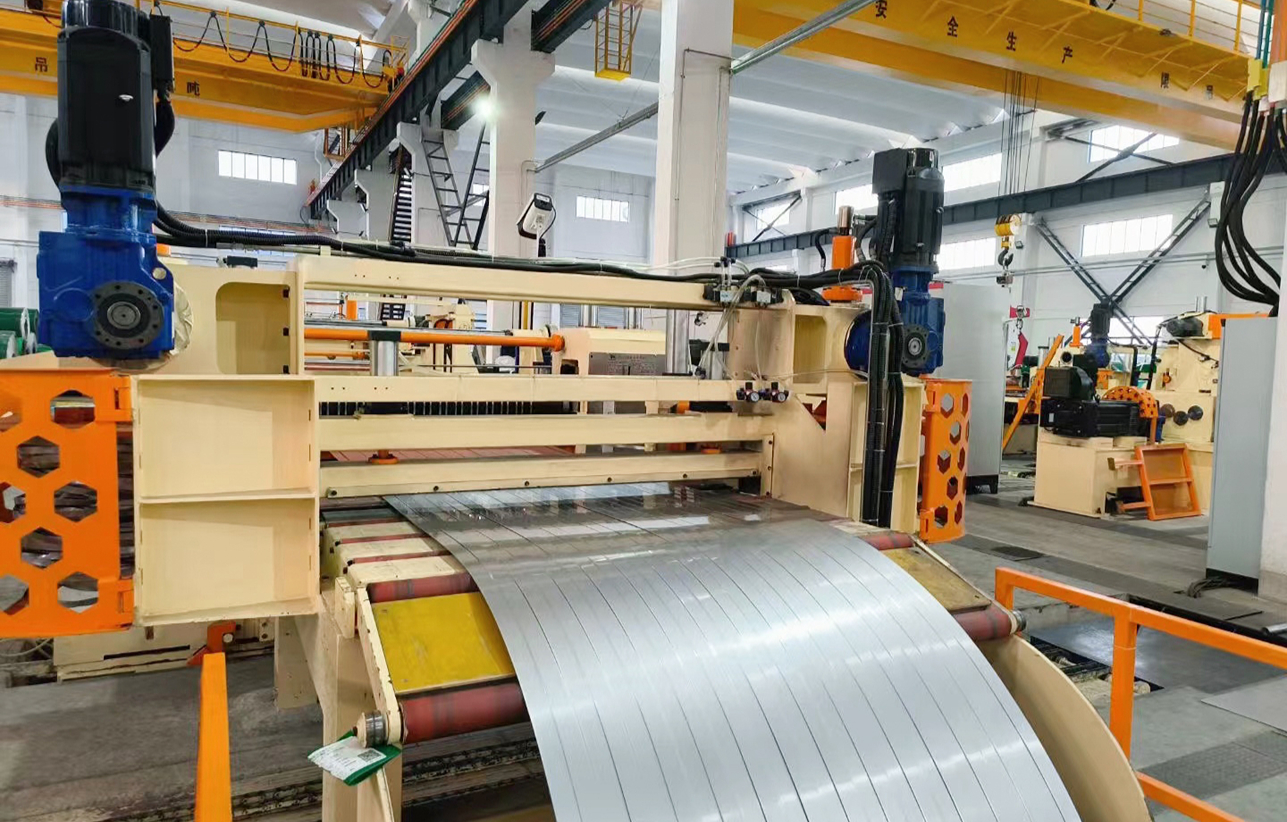

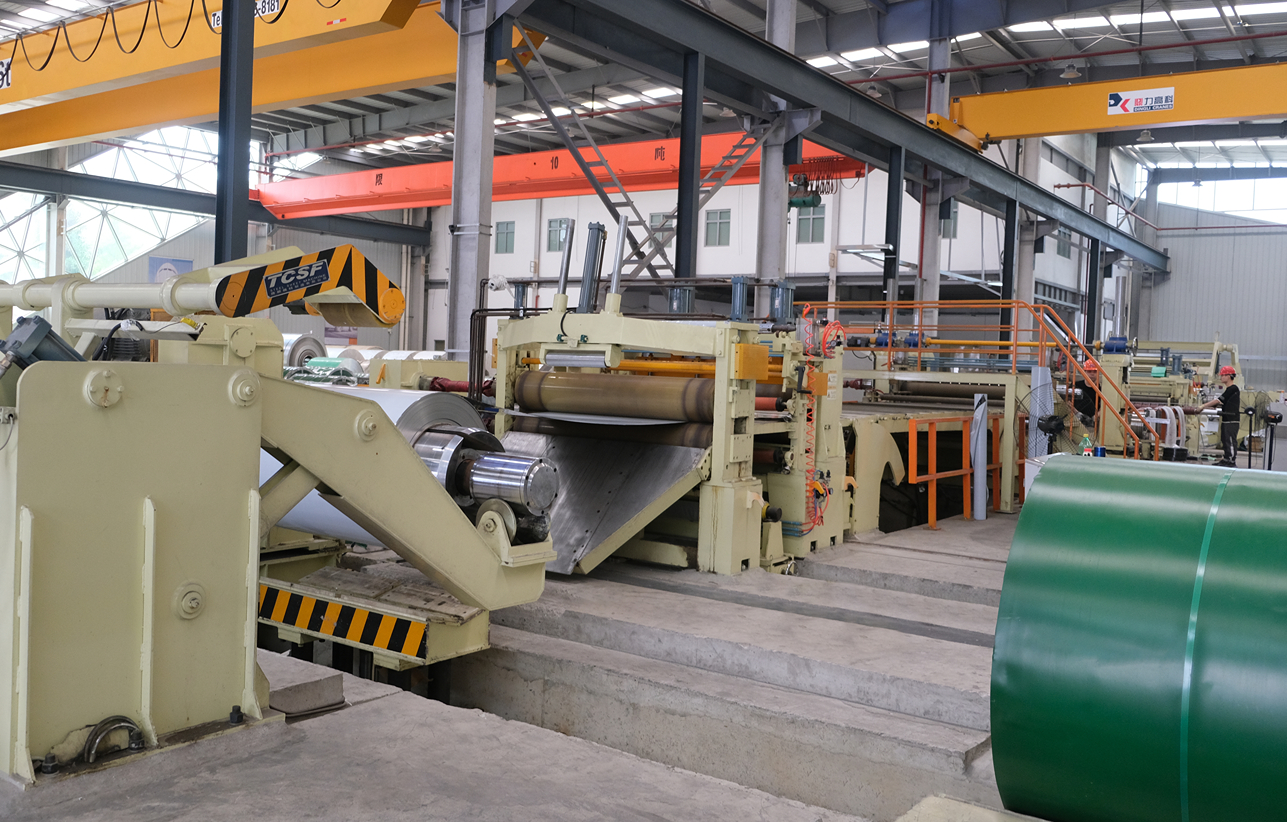

Parallel Coil Processing Lines

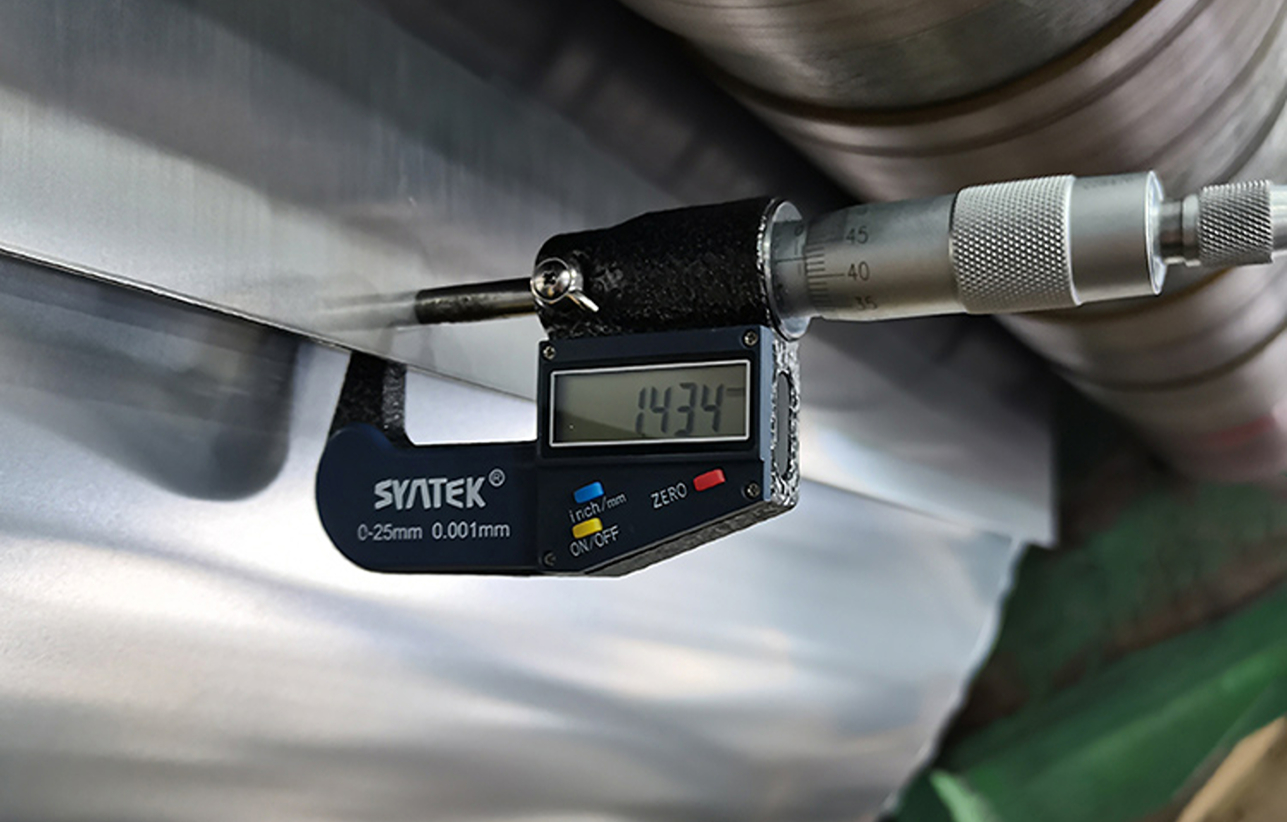

Coil Thickness Measurement

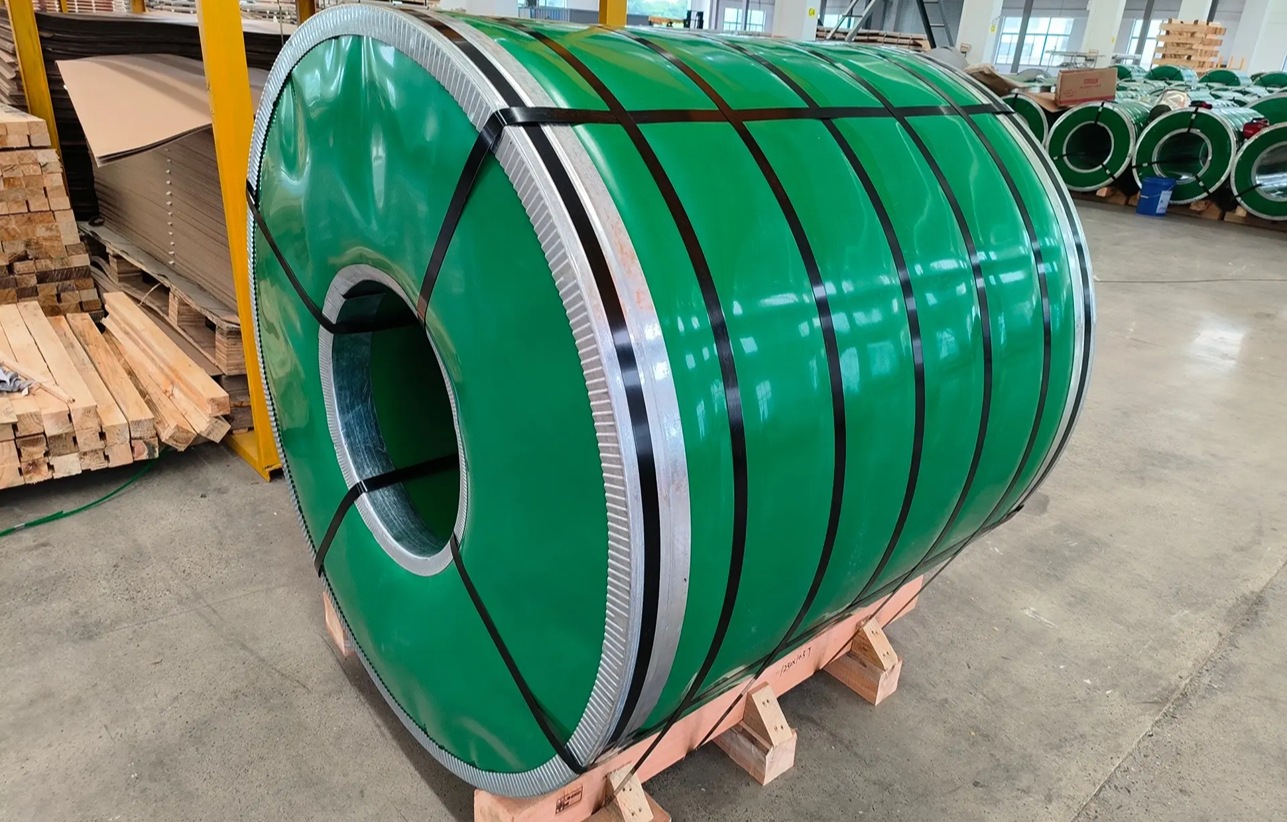

Single Coil Packaging

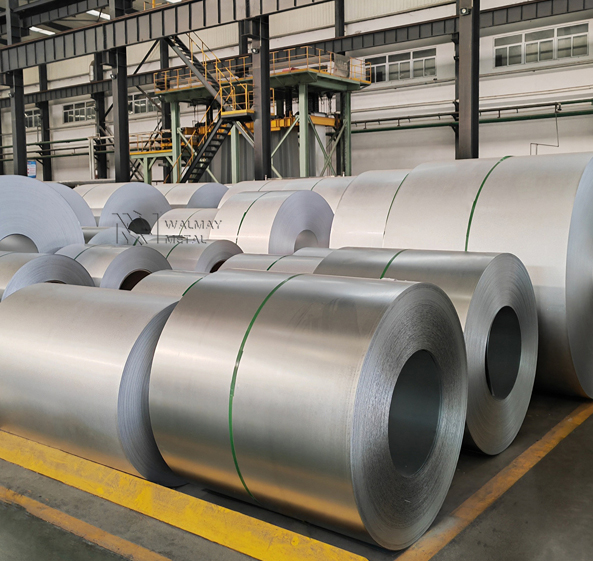

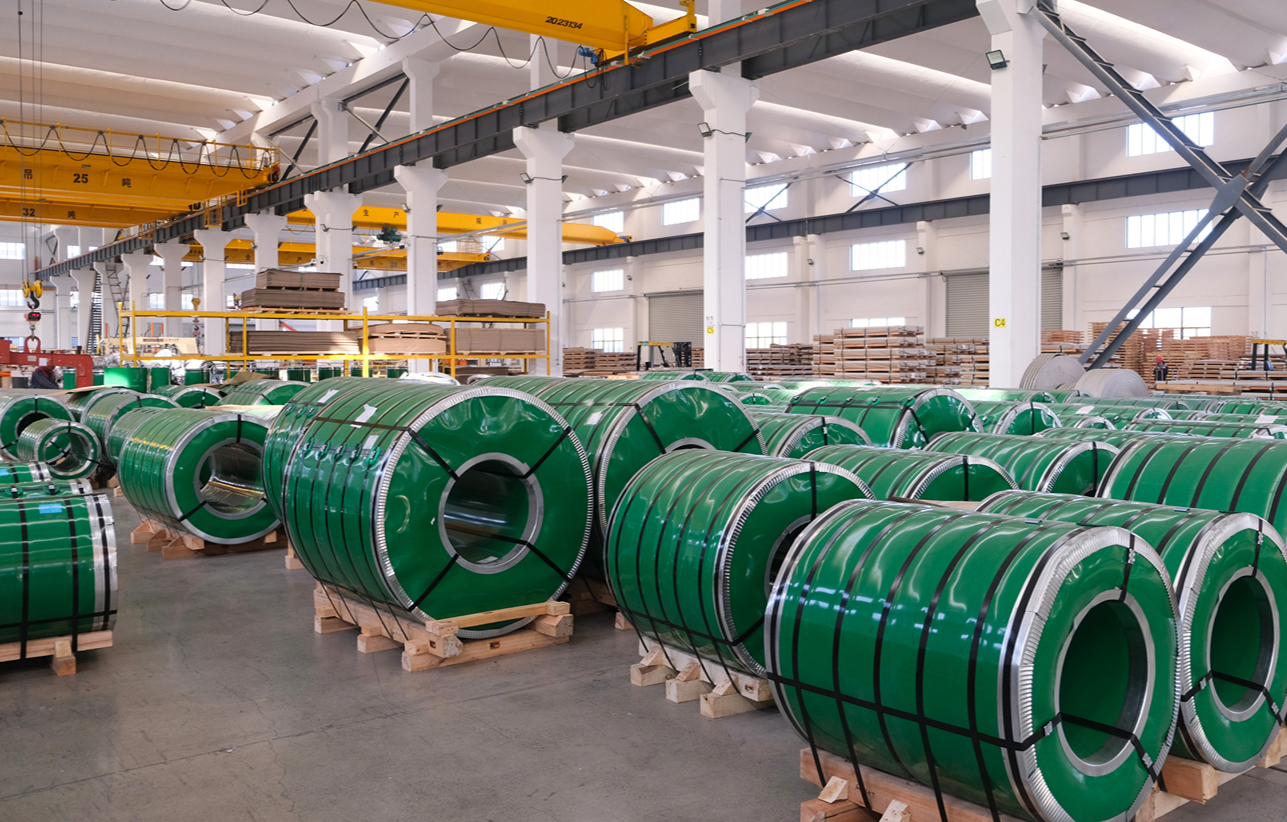

Factory Coil Storage

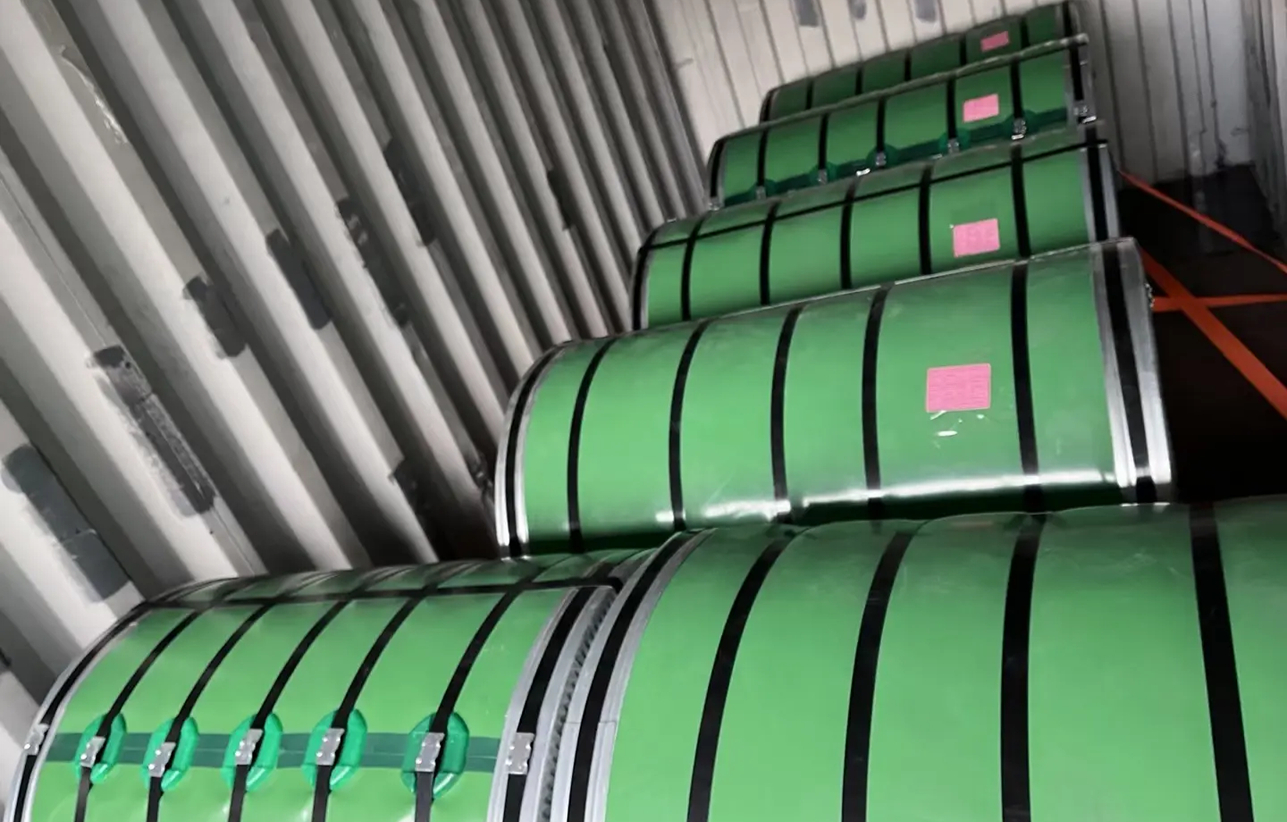

Truck Loading of Coils
Seawater pipes (1.5 mm × 1000 mm coil)
High-pressure reactors (2.0 mm × 1219 mm coil)
Use ER2209 welding wire; no preheating required
Custom lead time 10–15 days, phase proportion inspection report provided
Walmay will help match the right stainless product form and specification for your application, confirm quantities and packing needs, and provide requested documents based on order requirements.
