Cost-Effective Solution for Automotive Exhaust Systems and Heat-Resistant Components
| Element | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Cr | Ti |
|---|---|---|---|---|---|---|---|
| Content % | 0.03 | 1 | 1 | 0.045 | 0.03 | 10.5–11.75 | 6*(C+N)–0.75 |
Density: 7.7 g/cm³
Melting Point: 1427–1510 °C
Magnetism: Strong magnetic
Mechanical Properties: Tensile strength ≥360 MPa, yield strength ≥175 MPa
Thickness: 0.8–2.0 mm (tolerance ±0.08 mm)
Width: 1000 / 1219 mm
Surface: 2D (cold-rolled annealed), customizable passivation
Coil Weight: 5–10 t/coil, inner diameter Φ508 mm

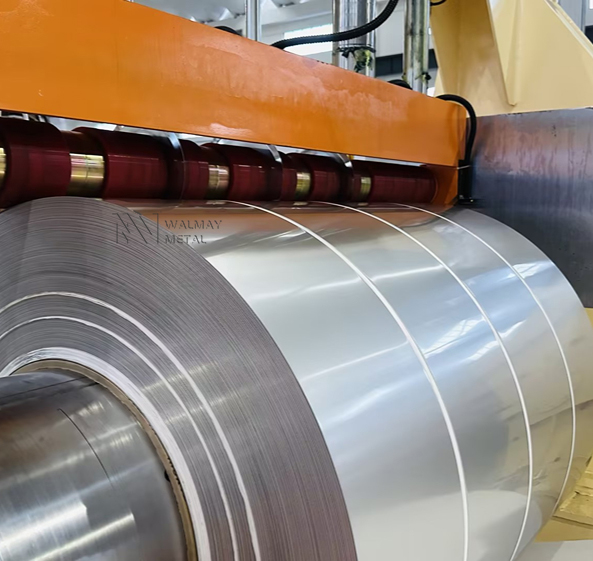

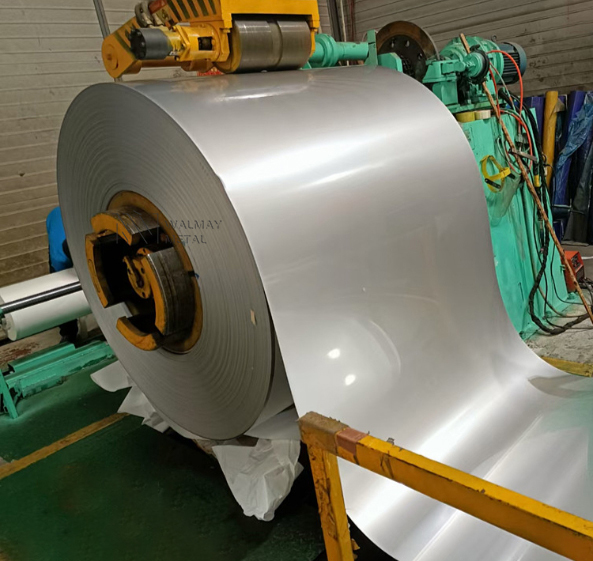

Coil Feeding into Processing Machine
Parallel Coil Processing Lines
Coil Thickness Measurement
Single Coil Packaging

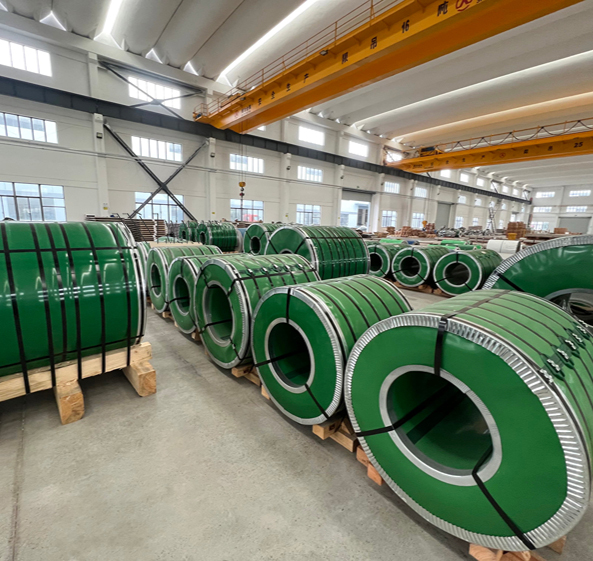

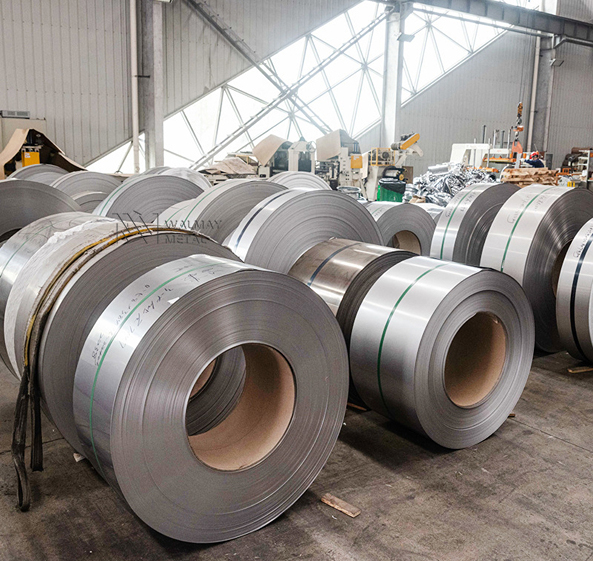

Factory Coil Storage
Truck Loading of Coils
Mid-section exhaust pipes (1.2 mm × 1000 mm coil)
409L stainless coil used in mid-section exhaust pipes manufactured in automotive manufacturing plants, providing reliable heat resistance and durability under continuous high-temperature exhaust conditions.
Boiler flue pipes (1.5 mm × 1219 mm coil)
409L stainless coil applied in boiler flue pipes commonly installed in energy production plants, delivering stable oxidation resistance and structural performance in high-temperature industrial exhaust systems.
Use ER409L welding wire; preheat 100 °C before welding
Standard 1.0 mm × 1219 mm available; 24-hour delivery
Walmay will help match the right stainless product form and specification for your application, confirm quantities and packing needs, and provide requested documents based on order requirements.
