430 Economy Cold-Rolled Coil (1Cr17), compliant with GB/T 3280-2015, is a ferritic stainless steel with high chromium content (16–18%).
| Element | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Cr |
|---|---|---|---|---|---|---|
| Content % | 0.12 | 0.75 | 1 | 0.035 | 0.03 | 16.0–18.0 |
Density: 7.7 g/cm³
Melting Point: 1427–1510 °C
Magnetism: Strong
Mechanical Properties: Tensile strength ≥415 MPa, elongation ≥22%
Thickness: 0.3–3.0 mm (tolerance ±0.05 mm)
Width: 1000 / 1219 mm
Surface: 2B (cold-rolled annealed), customizable matte finish
Coil Weight: 5–10 t/coil, inner diameter Φ508 mm

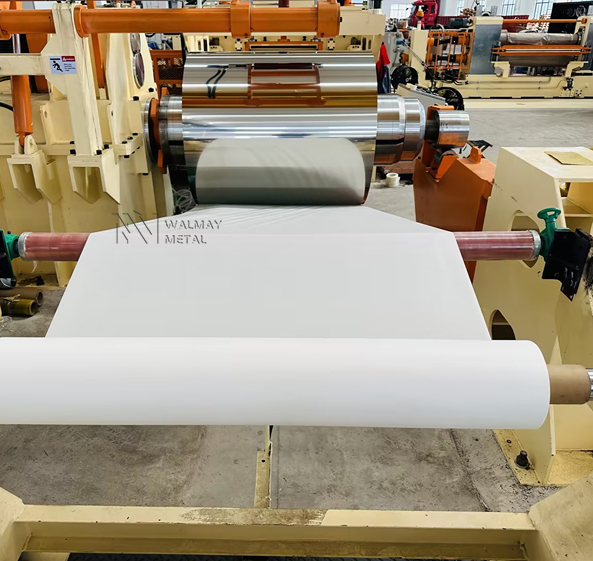

Coil Feeding into Processing Machine

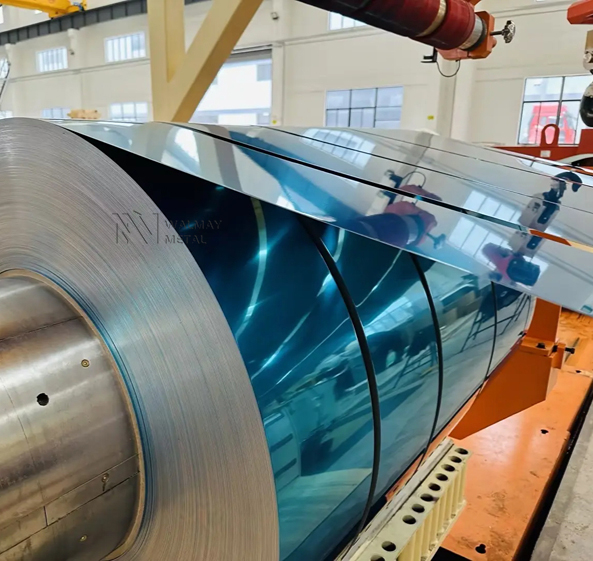

Parallel Coil Processing Lines
Coil Thickness Measurement
Single Coil Packaging

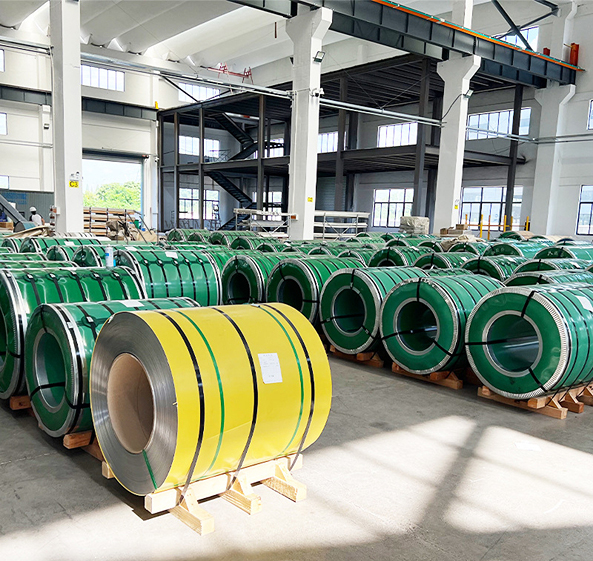

Factory Coil Storage
Truck Loading of Coils
Refrigerator inner panels (0.5 mm × 1000 mm coil)
Sink panels (0.8 mm × 1219 mm coil)
Use ER430 welding wire; post-weld annealing required to relieve stress
Standard 0.6 mm × 1219 mm available; 24-hour delivery
Walmay will help match the right stainless product form and specification for your application, confirm quantities and packing needs, and provide requested documents based on order requirements.
