Designed with ultra-low carbon and titanium stabilization, it effectively prevents intergranular corrosion while offering cost savings—only 60% of the cost of 304 stainless steel.
| Element | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr | Ti | N≤ |
|---|---|---|---|---|---|---|---|---|
| Content (%) | 0.03 | 1 | 1 | 0.045 | 0.03 | 10.5–11.75 | 6×(C+N)–0.75 | 0.03 |
| Property | Range | Standard | 304 Reference |
|---|---|---|---|
| Density | 7.7 g/cm³ | GB/T 7999 | 7.93 g/cm³ |
| Melting Point | 1427–1510℃ | - | 1398–1454℃ |
| Tensile Strength | ≥360 MPa | GB/T 228.1-2021 | ≥520 MPa |
| Yield Strength | ≥175 MPa | GB/T 228.1-2021 | ≥205 MPa |
| Elongation | ≥20% | GB/T 228.1-2021 | ≥40% |
| Hardness (HB) | ≤183 | GB/T 231.1-2009 | ≤187 |
| Oxidation Resistance (600℃) | ≤0.08mm/year | GB/T 13303 | ≤0.1mm/year |
| Process Type | Thickness (mm) | Width (mm) | Length (mm) | Surface Finish | Tolerance |
|---|---|---|---|---|---|
| Cold Rolled | 0.3–6.0 | 1000/1219/1250 (Mill Edge) | 2000/2440/3000 | 2B / Passivated | ±0.02mm |
| Hot Rolled | 6.0–16.0 | 1500/1800/2000 | 6000 (fixed) | NO.1 (Pickled) | ±0.1mm |
Customization Services:
Slitting (min width 50mm), laser cutting (any shape), and high-temperature passivation available. Custom widths (up to 1800mm) can be delivered within 7 days without delaying production schedules.
Stainless Steel Plate Bending/Stamping Process
Stainless Steel Plates on Storage Rack

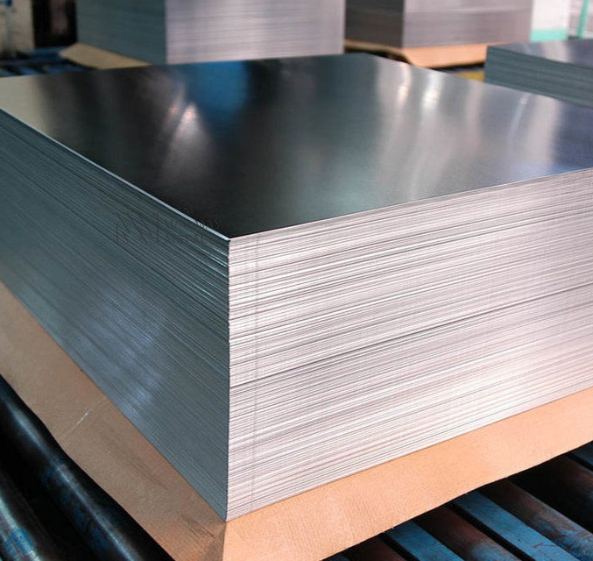

Palletized Stainless Steel Plates

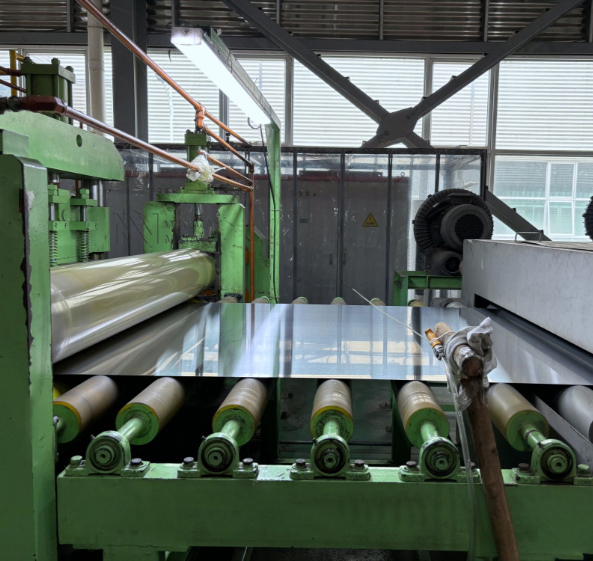

Stainless Steel Plate Rolling Line
Precision Thickness Inspection of Stainless Steel Plate
Forklift Loading Stainless Steel Plates for Shipment
Specification: 1.2mm × 1219 × 2440mm
Case: Used in exhaust shields for a leading automaker. The 2B surface withstood 600℃ exhaust heat, offering 4× the service life of carbon steel at 30% lower cost.
Specification: 3mm × 1500 × 6000mm
Case: Applied to industrial gas treatment systems. Hot-rolled NO.1 plate with passivation provided resistance to acid and alkaline fumes, extending maintenance cycles to 2 years.
Specification: 2mm × 1219 × 2440mm
Case: Used in commercial HVAC heat exchanger fins. The 409 cold-rolled sheet improved thermal conductivity and achieved 95% material utilization after precision slitting.
Specification: 0.8mm × 1000 × 2000mm
Case: Used in shopping mall ventilation ducts. The 2B surface provided strong magnetism for easy installation and 40% lower cost compared with 304.
Walmay will help match the right stainless product form and specification for your application, confirm quantities and packing needs, and provide requested documents based on order requirements.
