316L BA Mirror Stainless Steel Coil (00Cr17Ni14Mo2), compliant with GB/T 3280-2015, is an ultra-low carbon austenitic stainless steel.
| Element | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| Content % | 0.03 | 1 | 2 | 0.035 | 0.03 | 16.0–18.0 | 12.0–15.0 | 2.0–3.0 |
Density: 7.98 g/cm³
Melting Point: 1375–1450 °C
Thermal Conductivity: 15.2 W/(m·K)
Mechanical Properties (Annealed): Tensile strength ≥480 MPa, elongation ≥40%, hardness ≤200 HB
Thickness: 0.3–3.0 mm (tolerance ±0.05 mm)
Width: 1000 / 1219 / 1500 mm
Surface: BA mirror (Ra ≤0.8 μm), customizable 8K mirror (Ra ≤0.2 μm)
Coil Weight: 5–15 t/coil, inner diameter Φ508 mm

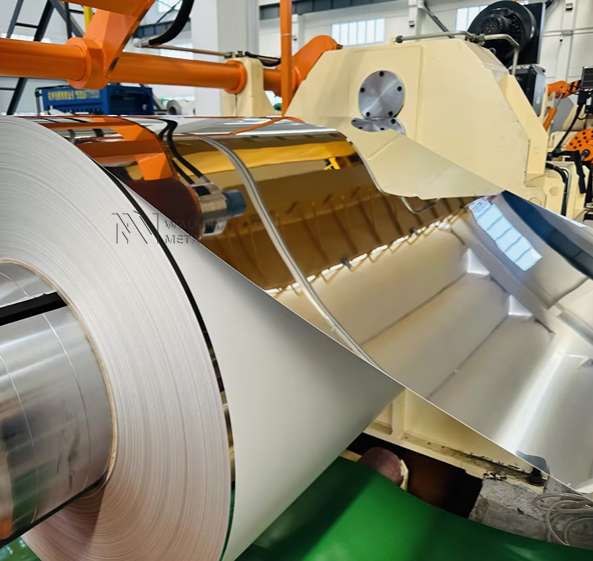

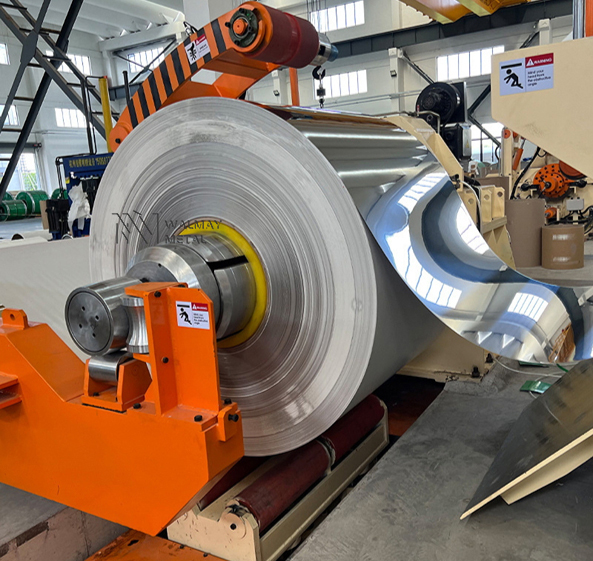

Coil Feeding into Processing Machine

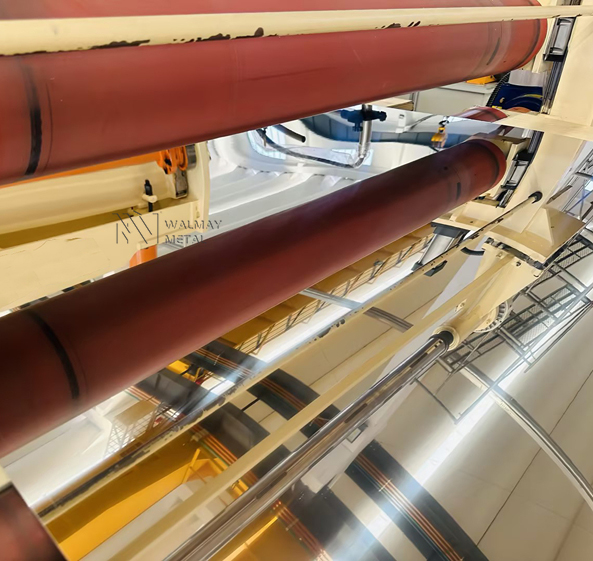

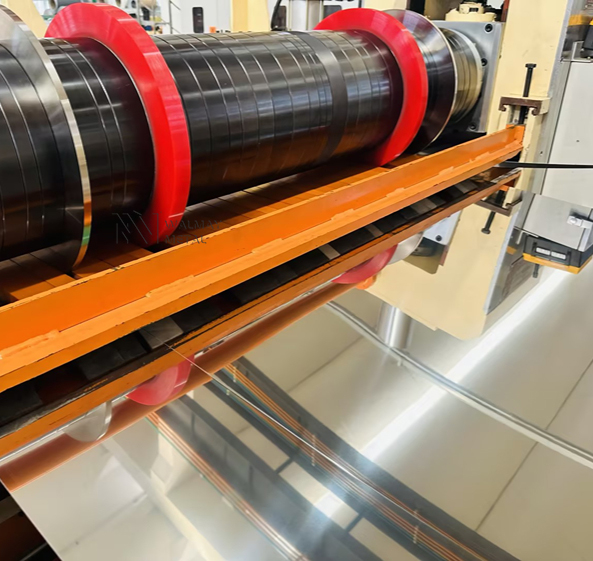

Parallel Coil Processing Lines
Coil Thickness Measurement
Single Coil Packaging
Factory Coil Storage
Truck Loading of Coils
Surgical instrument housings (0.5 mm × 1219 mm coil), ISO 13485 certified
Seawater desalination pipes (1.0 mm × 1500 mm coil), chloride-resistant
Use ER316L welding wire; no post-weld heat treatment required
Standard 1.0 mm × 1219 mm available; 48-hour delivery
Walmay will help match the right stainless product form and specification for your application, confirm quantities and packing needs, and provide requested documents based on order requirements.
