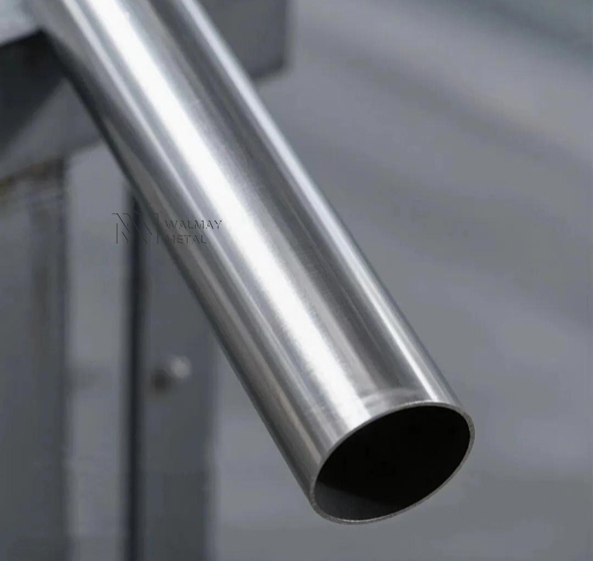

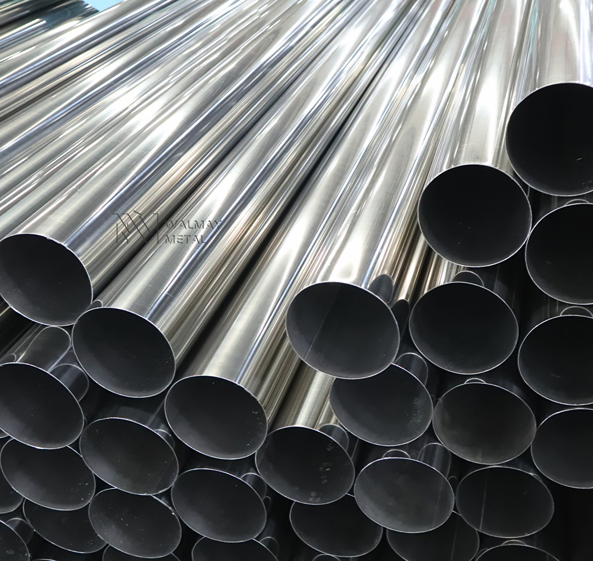

Food-Grade Standard, Widely Used in Building Water Supply/Drainage, Food Processing, Brewing, and General Industrial Fluid Conveyance
| Element | Content (%) | Analysis of Functions in Food-Grade Applications |
|---|---|---|
| C | ≤0.07 | Low-carbon design reduces the risk of intergranular corrosion in welding and meets the material stability requirements in high-temperature sterilization scenarios. |
| Cr | ≤0.07 | A Cr₂O₃ passivation film is formed to resist lactic acid corrosion in milk, with an oxide film repair rate of 0.4nm/h. |
| Ni | 8.0-10.0 | The stable austenitic structure maintains a low-temperature toughness retention rate of ≥80% at -20℃, preventing pipe embrittlement during the transportation of frozen dairy products. |
| Physical Properties | Density 7.93g/cm³, melting point 1398-1454℃, thermal conductivity 16W/(m·K), suitable for food processing environments with alternating hot and cold conditions. |
|---|---|
| Mechanical Properties | Yield strength ≥205MPa, elongation ≥40%, capable of withstanding a hydraulic test at 1.5 times the design pressure (test pressure 15BAR, no leakage after 30 minutes of pressure holding). |
| Chemical Properties | In 3.5% sodium chloride solution, pitting potential ≥+300mV; crevice corrosion resistance is 15% better than that of ordinary 304 welded pipes. |
| Outer Diameter Range | 10-108mm (tolerance ±0.1mm for ≤50mm; ±0.2mm for >50mm). |
|---|---|
| Wall Thickness Range | 0.8-6.0mm (tolerance ±5%), with common specifications of 1.2mm, 1.5mm, and 2.0mm. |
| Length Specifications | Fixed length 6m (tolerance ±5mm), customizable to 3-12m, and coil pipes are available (outer diameter ≤38mm, coil diameter ≥1.5m). |
| Surface Treatment | Inner wall mechanical polishing (Ra≤0.6μm) + outer wall 2B/BA (Ra≤0.8μm), with customizable electrolytic polishing (inner wall Ra≤0.4μm). |
| Welding Process | Automatic TIG welding (internal weld reinforcement ≤0.1mm), with post-weld degreasing and passivation treatment (nitric acid concentration 20-25%). |
Stainless Steel Tubes Packed in Truck
Wooden Crate Packaging in Factory
Neo-Mac Machine with Stainless Steel Tubes
Factory Tube Packaging Process
Industrial Manufacturing Equipment
Stainless Steel Composition Analyzer
Size: 38×2.0mm×6m.
Advantageous Data: No residue on the inner wall, CIP cleaning efficiency increased by 30%
Typical Cases: Mengniu Dairy pasteurized milk production line
Size: 76×3.0mm×12m.
Advantageous Data: Withstands 135℃ high-temperature sterilization, service life ≥10 years
Typical Cases: Yili yogurt fermentation tank circulation pipeline
Size: 19×1.2mm
Advantageous Data: Bending radius ≤3D, fluid resistance reduced by 20%
Typical Cases: Coca-Cola syrup conveying system
Common sizes (19–57 mm) available in stock; minimum order 50 m
Custom sizes: MOQ ≥100 m, delivery 15–20 days
Export-ready packaging and full traceability with Mill Test Reports
