Produced under both ASTM and GB/T standards, it provides dependable corrosion resistance and structural strength for decorative, furniture, and appliance applications.
| Element | C≤ | Si≤ | Mn | P≤ | S≤ | Cr | Ni | N≤ |
|---|---|---|---|---|---|---|---|---|
| Content (%) | 0.15 | 1 | 5.5–7.5 | 0.06 | 0.03 | 16.0–18.0 | 3.5–5.5 | 0.25 |
| Property | Range | Standard | 304 Reference |
|---|---|---|---|
| Density | 7.93 g/cm³ | GB/T 7999 | 7.93 g/cm³ |
| Melting Point | 1398–1454℃ | - | 1398–1454℃ |
| Tensile Strength | ≥520 MPa | GB/T 228.1-2021 | ≥520 MPa |
| Yield Strength | ≥275 MPa | GB/T 228.1-2021 | ≥205 MPa |
| Elongation | ≥40% | GB/T 228.1-2021 | ≥40% |
| Hardness (HB) | ≤200 | GB/T 231.1-2009 | ≤187 |
| Salt Spray Resistance (Dry) | ≥300h No Rust | ASTM B117 | ≥500h No Rust |
| Process Type | Thickness (mm) | Width (mm) | Length (mm) | Surface Finish | Tolerance |
|---|---|---|---|---|---|
| Cold Rolled | 0.3–6.0 | 1000/1219/1250 (Mill Edge) | 2000/2440/3000 | 2B / NO.4 (Brushed) | ±0.02mm |
| Hot Rolled | 6.0–16.0 | 1500/1800/2000 | 6000 (fixed) | NO.1 (Pickled) | ±0.1mm |
Customization Services:
Supports slitting (min width 50mm), laser cutting (any shape), and anti-fingerprint or PE film coating. Special surface treatments can be completed within 5 days to meet project schedules.
Stainless Steel Plate Bending/Stamping Process

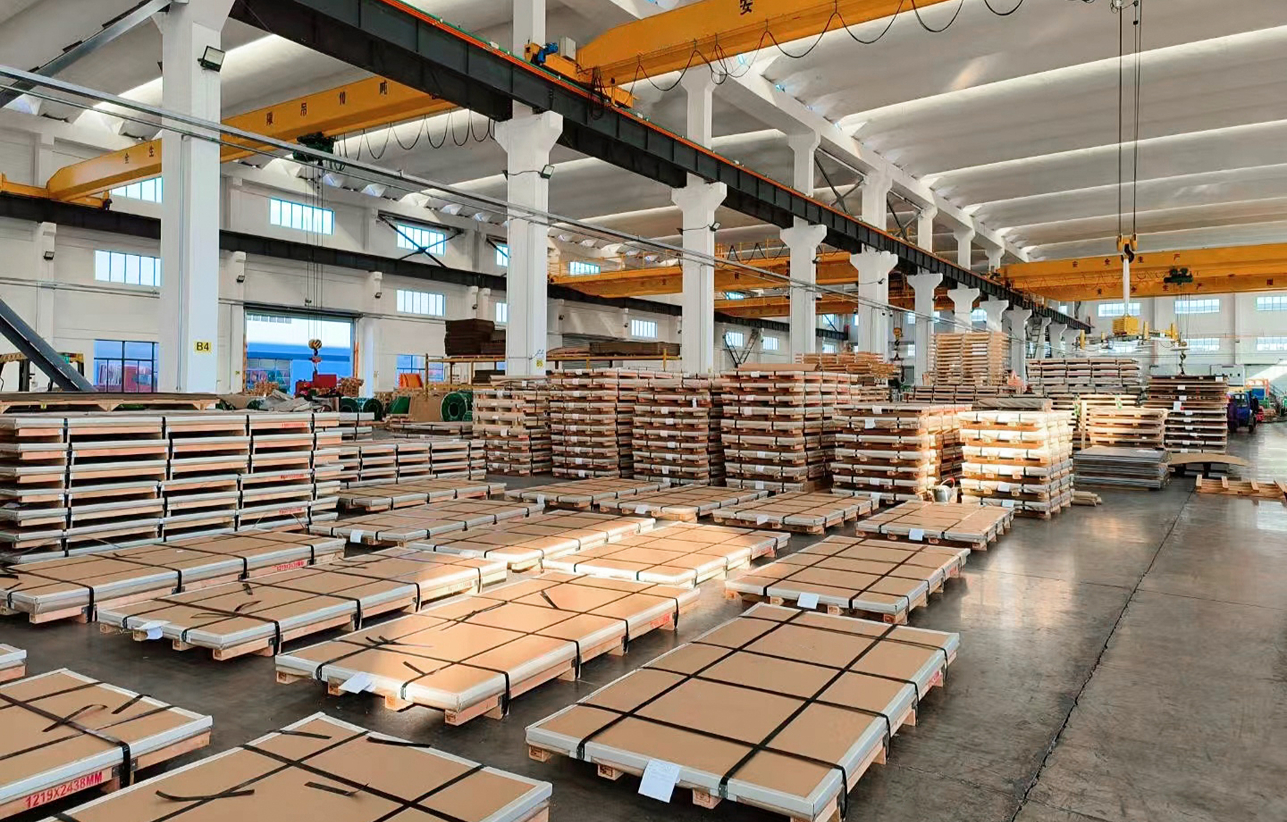

Stainless Steel Plates on Storage Rack

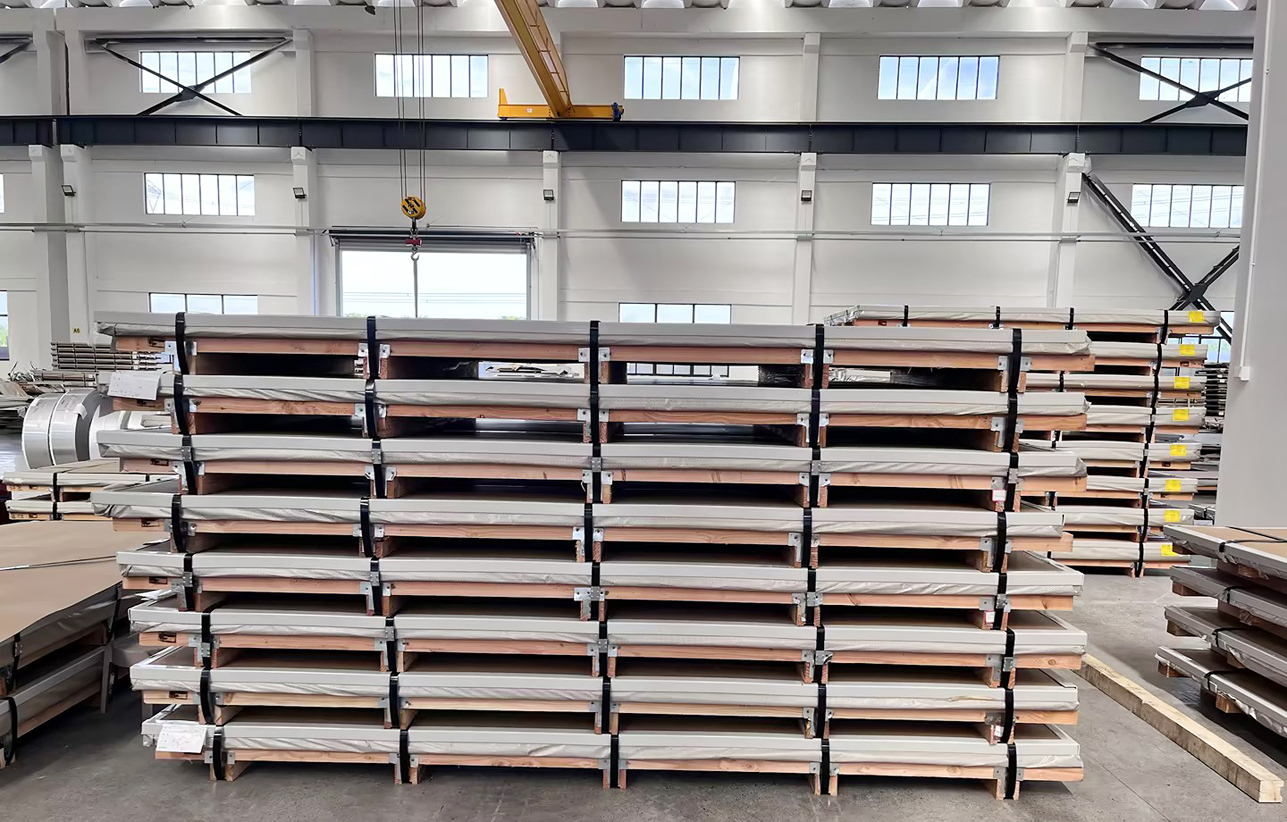

Palletized Stainless Steel Plates

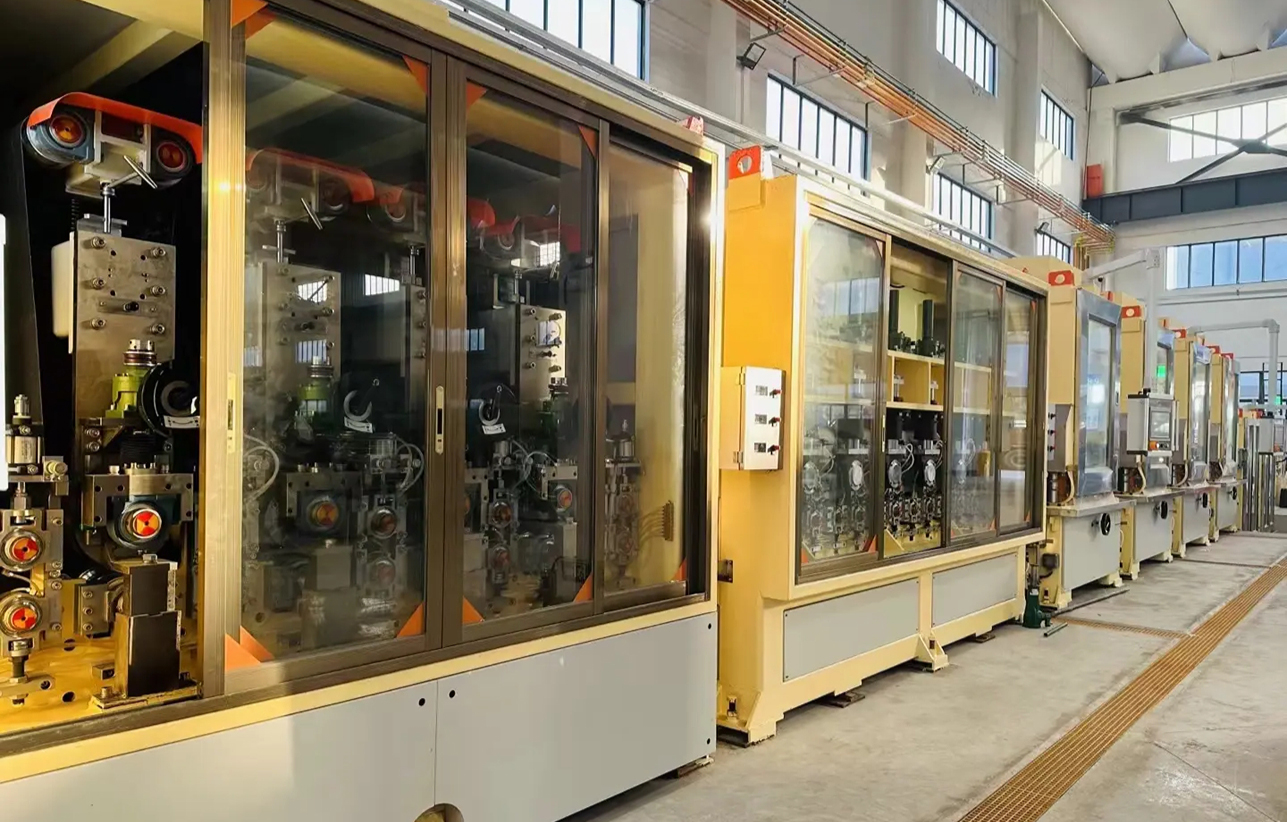

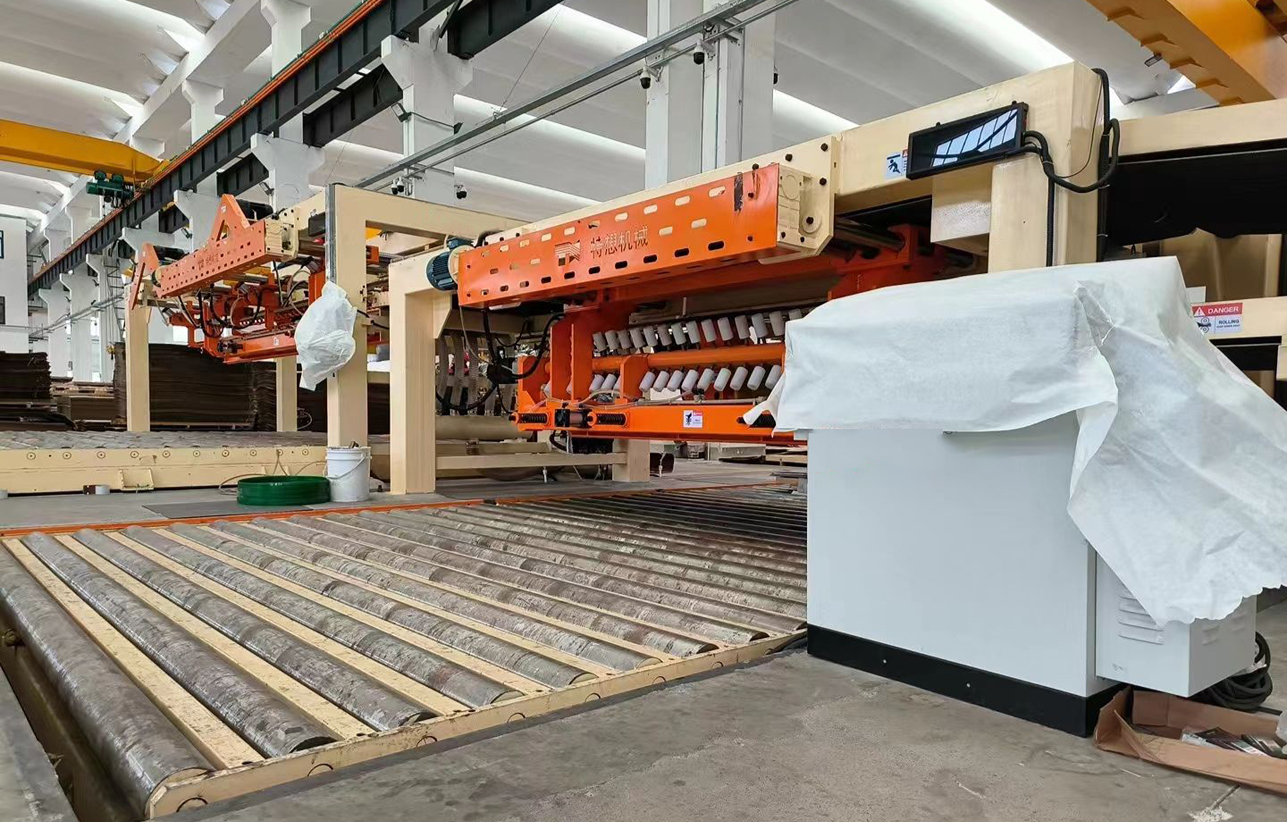

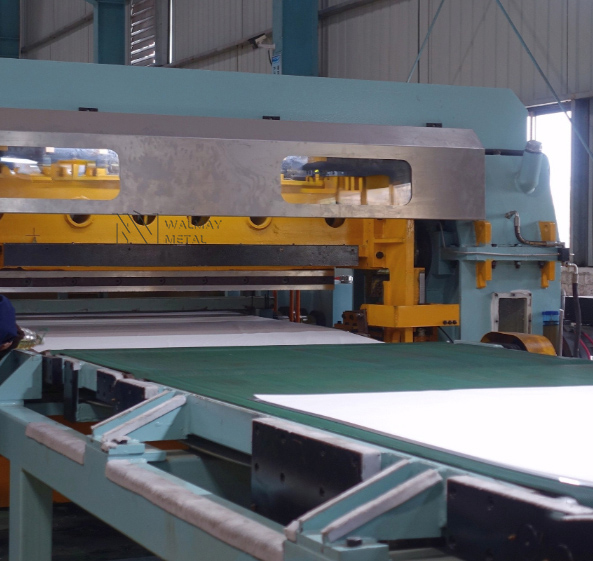

Stainless Steel Plate Rolling Line

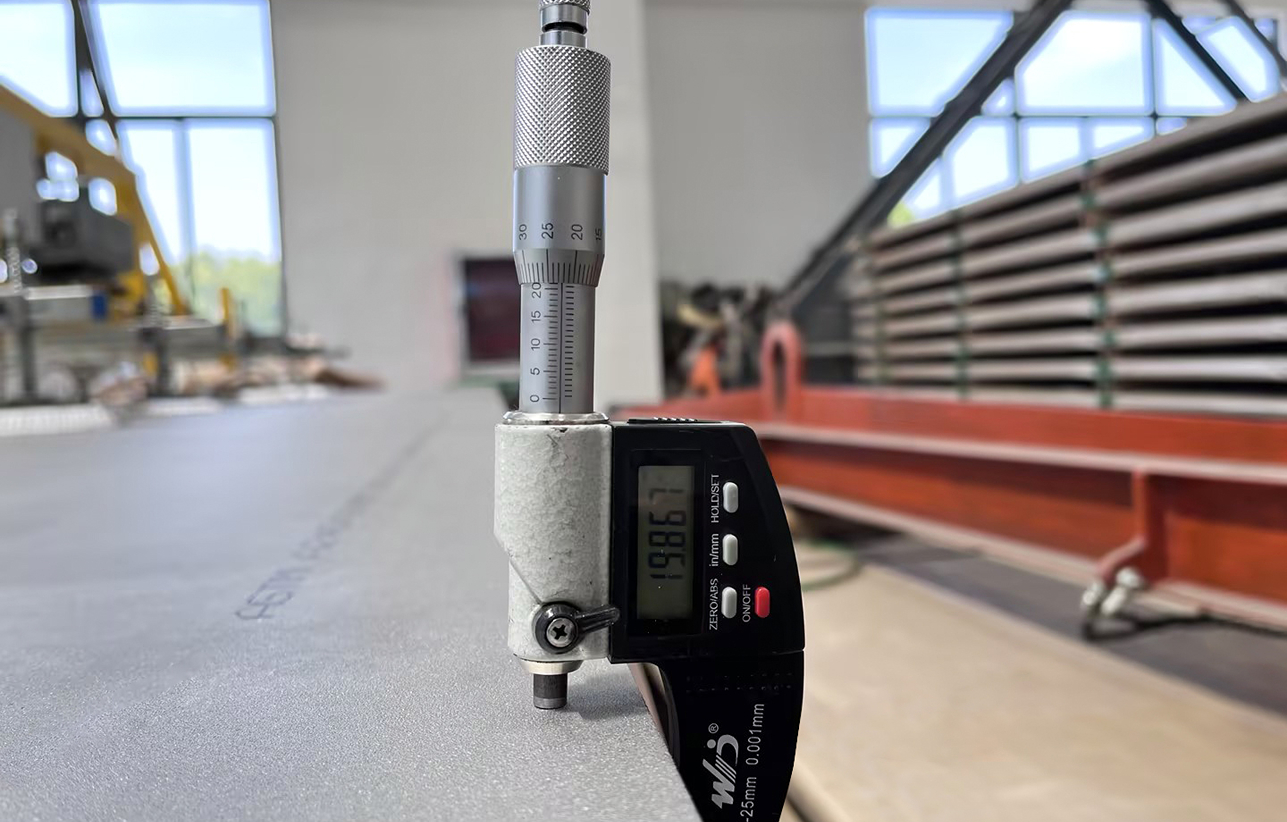

Precision Thickness Inspection of Stainless Steel Plate

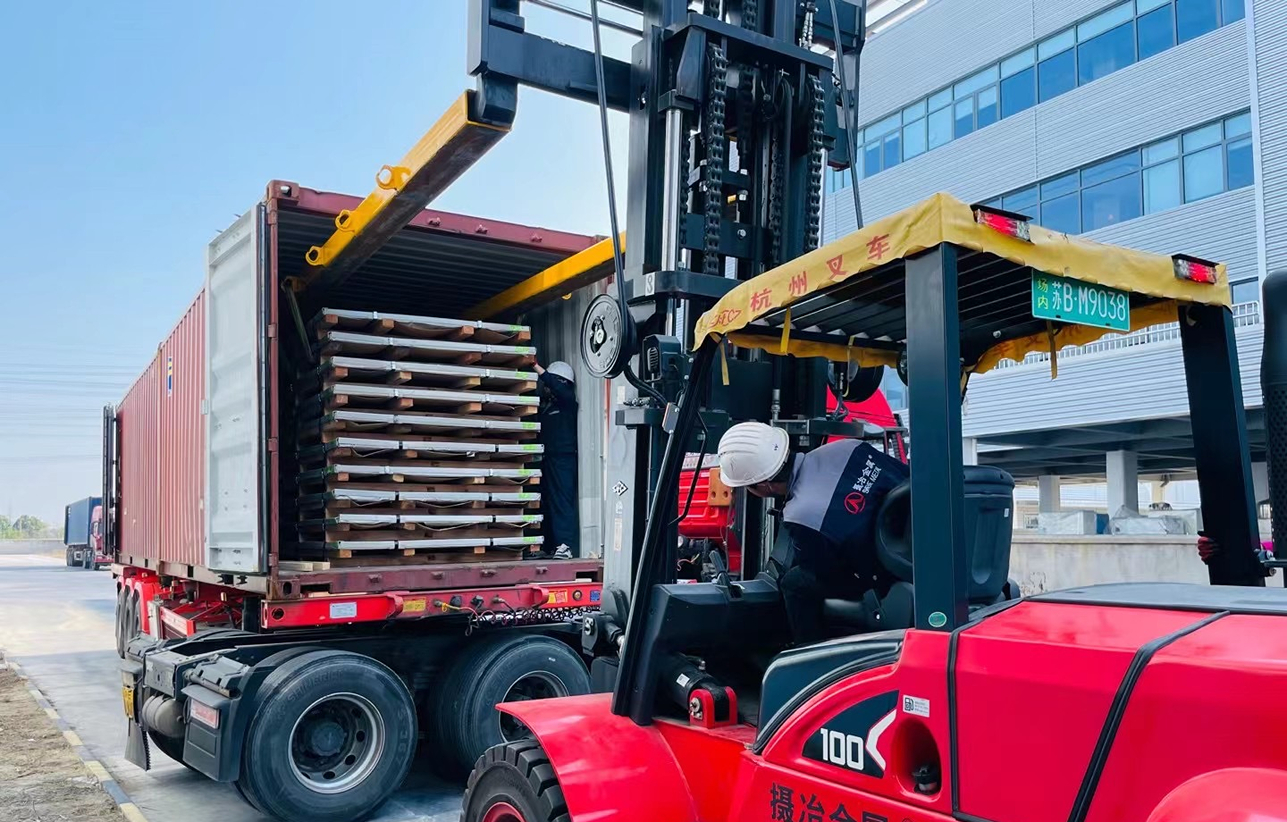

Forklift Loading Stainless Steel Plates for Shipment
Specification: 1.0mm × 1219 × 2440mm
Case: Used for shopping mall trim panels. NO.4 brushed surface provided a premium metallic texture comparable to 304, cutting costs by 35% with no visible rust after 3 years.
Specification: 0.8mm × 1000 × 2000mm
Case: Applied to stainless-steel coffee table frames. Cold-rolled 2B sheets achieved flawless bending without cracking, increasing material utilization to 92%.
Specification: 0.5mm × 1219 × 3000mm
Case: Used for washing machine panels. Provided twice the lifespan of carbon steel parts in humid environments, saving manufacturers about ¥15 per unit.
Specification: 2.0mm × 1219 × 6000mm
Case: Deployed in residential fencing systems. NO.1 hot-rolled plates with passivation treatment improved atmospheric corrosion resistance and extended maintenance cycles by 2 years.
Walmay will help match the right stainless product form and specification for your application, confirm quantities and packing needs, and provide requested documents based on order requirements.
