These plates are suitable for heavy machinery structures, pressure vessels, chemical equipment enclosures, and other industrial applications, in accordance with standard stainless steel material specifications.
| Element | Content (%) |
|---|---|
| C | ≤0.08 |
| Cr | 18.0–20.0 |
| Ni | 8.0–11.0 |
| Mn | ≤2.0 |
| Si | ≤1.0 |
| P | ≤0.045 |
| S | ≤0.03 |
| N | ≤0.10 |
| Property | Value | Test Standard |
|---|---|---|
| Density | 7.93 g/cm³ | GB/T 7999 |
| Tensile Strength | ≥520MPa | GB/T 228.1 |
| Elongation | ≥35% | GB/T 228.1 |
| Salt Spray Resistance (NSS) | 720 hours, no rust | ASTM B117 |
Thickness: 2–20mm (tolerance ±0.1mm, hot-rolled precision)
Width: 1250 / 1500 / 1800 / 2000mm (standard)
Length: 2000 / 2440 / 6000mm (customizable)
Common Grades: 304, 316L, 430
Stainless Steel Plate Bending/Stamping Process

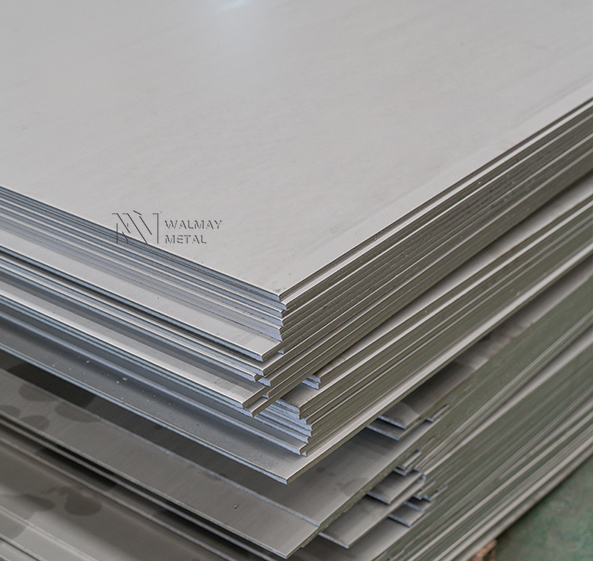

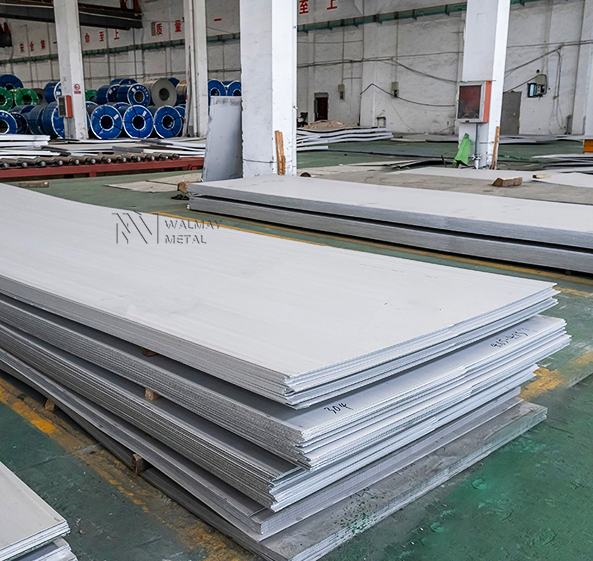

Stainless Steel Plates on Storage Rack
Palletized Stainless Steel Plates
Stainless Steel Plate Rolling Line
Precision Thickness Inspection of Stainless Steel Plate
Forklift Loading Stainless Steel Plates for Shipment
10mm 316L hot-rolled plate used for reactor shells in chemical plants, resistant to 80°C acidic media, with 5 years of leak-free service.
16mm 304 hot-rolled plate used for mining machinery bases, tensile strength 550MPa, bearing capacity 40% higher than standard carbon steel.
20mm 430 hot-rolled plate used for large factory steel columns, cost 30% lower than 304, meeting structural strength requirements in dry environments.
Walmay will help match the right stainless product form and specification for your application, confirm quantities and packing needs, and provide requested documents based on order requirements.
