3D Embossed Decorative Sheet, Combines Anti-Slip Durability with Artistic Texture for Elevator Cars and Creative Curtain Walls
| Element | Content (%) |
|---|---|
| C | ≤0.07 |
| Cr | 18.0–20.0 |
| Ni | 8.0–10.5 |
| Mn | ≤2.0 |
| Si | ≤1.0 |
| P | ≤0.045 |
| S | ≤0.03 |
| Property | Value | Test Standard |
|---|---|---|
| Density | 7.93 g/cm³ | GB/T 7999 |
| Tensile Strength | ≥520 MPa | GB/T 228.1 |
| Elongation | ≥40% | GB/T 228.1 |
| Salt Spray Resistance (NSS) | 1000 hours, no red rust | ASTM B117 |
Thickness: 0.3–3mm (tolerance ±0.03mm, cold-rolled precision)
Width: 1000 / 1219 / 1500mm (standard)
Length: 2000 / 2440 / 3000mm (customizable)

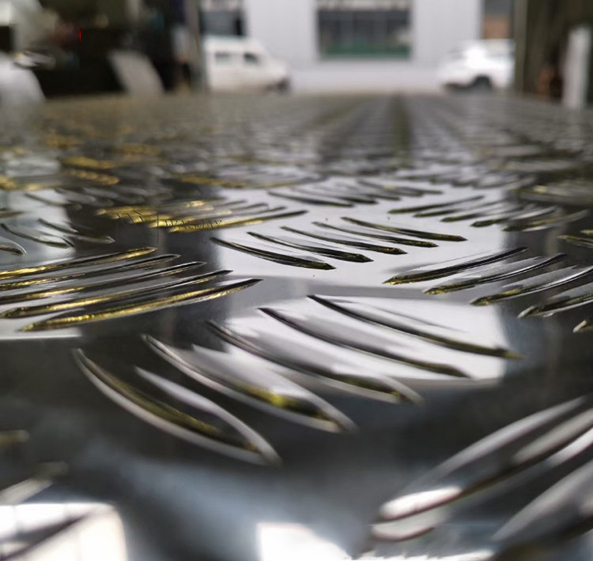

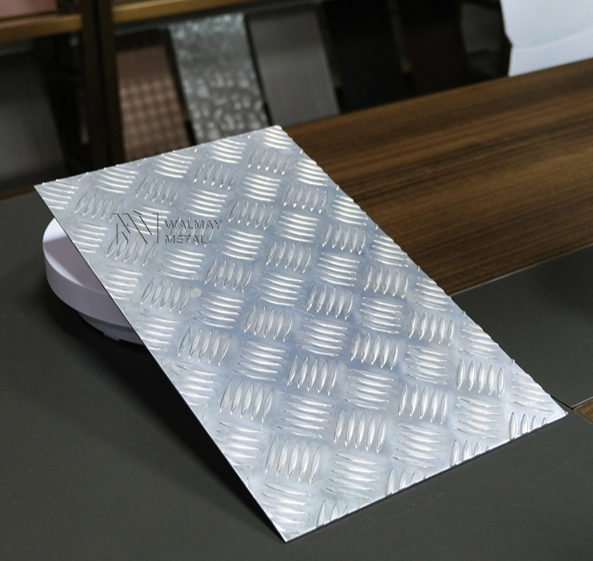

Embossing Patterns: Diamond (most common), lentil, rice grain, bark texture, etc. (custom designs available)
Stainless Steel Plate Bending/Stamping Process

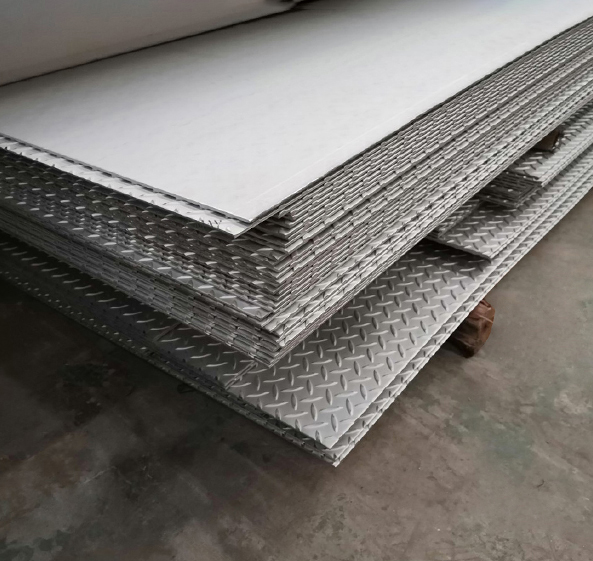

Stainless Steel Plates on Storage Rack
Palletized Stainless Steel Plates

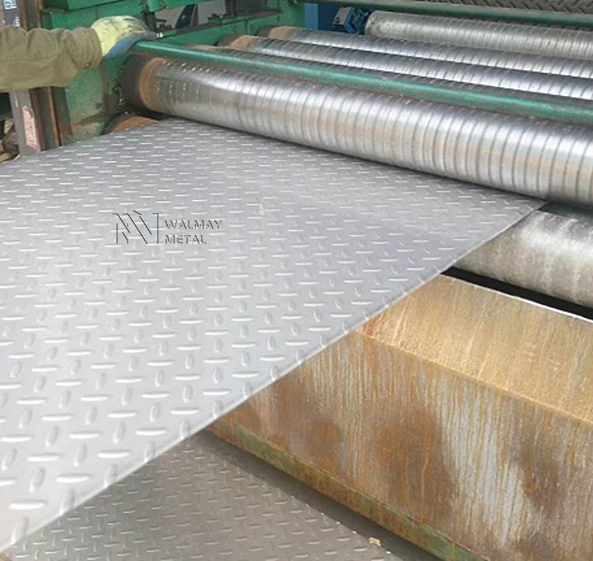

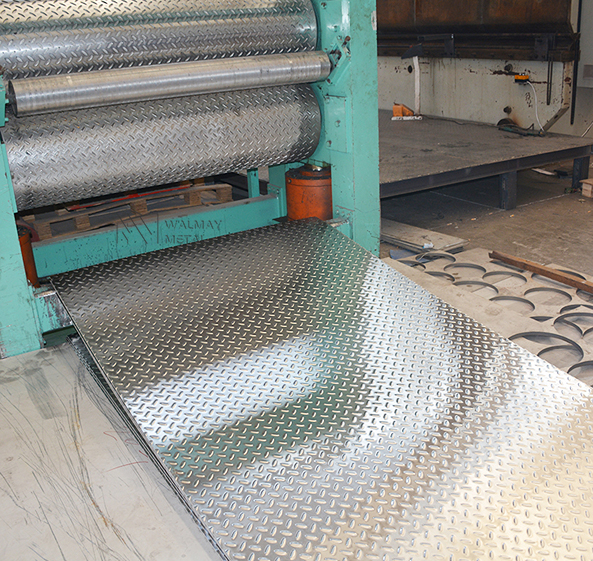

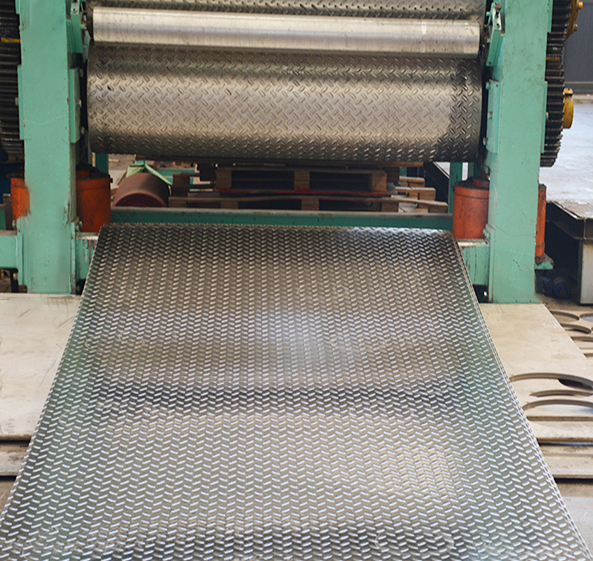

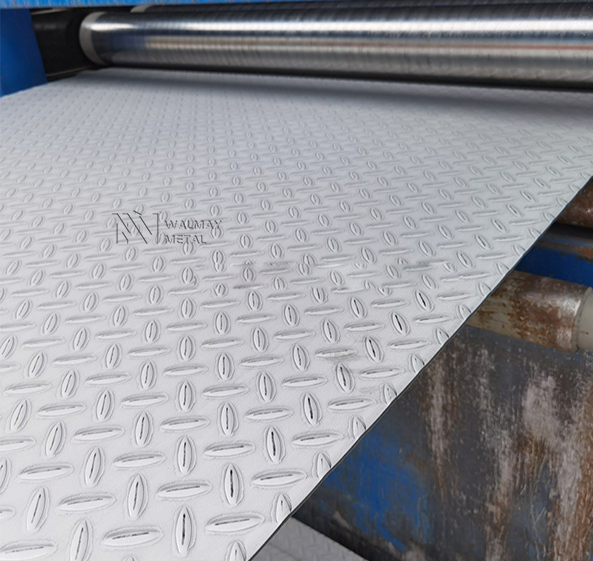

Stainless Steel Plate Rolling Line
Precision Thickness Inspection of Stainless Steel Plate
Forklift Loading Stainless Steel Plates for Shipment
1.5mm 304 diamond embossed sheet, friction coefficient 0.8, resistant to washing and corrosion, compliant with FDA food contact standards.
0.8mm 316L mirror embossed sheet, texture depth 0.2mm, no scratches after 3 years of use; wear resistance 50% higher than standard mirror sheets.
0.5mm rice grain embossed sheet for home cabinets, oil adhesion reduced by 30%, cleaning efficiency increased by 40%.
Walmay will help match the right stainless product form and specification for your application, confirm quantities and packing needs, and provide requested documents based on order requirements.
