Super High Chromium-Nickel Heat-Resistant Sheet, Specifically for Industrial Furnace Linings, High-Temperature Heat Treatment Equipment, and Radiant Tubes
| Element | Content (%) | High-Temperature Role |
|---|---|---|
| Cr (Chromium) | 24.0–26.0 | Forms dense Cr₂O₃ film, blocking oxygen diffusion; oxidation rate ≤0.01mm/100h. |
| Ni (Nickel) | 19.0–22.0 | Stabilizes austenitic structure, enhances high-temperature strength and toughness; elongation ≥15% at 1000℃. |
| Si (Silicon) | ≤1.5 | Promotes SiO₂ glass phase formation, fills oxide film pores, reduces oxidation rate by 30%. |
Physical Properties: Density 7.98 g/cm³, melting point 1400–1450℃, thermal expansion coefficient 14.0×10⁻⁶/℃ (20–1000℃).
High-Temperature Properties: Oxidation resistance classified as “complete oxidation resistance” (ISO 2014 standard) at 1200℃; creep strength ≥10MPa (1000℃/1000h).
Grade: 310S stainless steel (ASTM A240, UNS S31008).
Thickness: 2–20mm (stock: 2–10mm, 20mm made-to-order).
Width: 1000–1500mm.
Length: up to 4000mm.
Surface Finish: Annealed & pickled (2D), scale removal after high-temperature oxidation (pickling + shot blasting).
Stainless Steel Plate Bending/Stamping Process

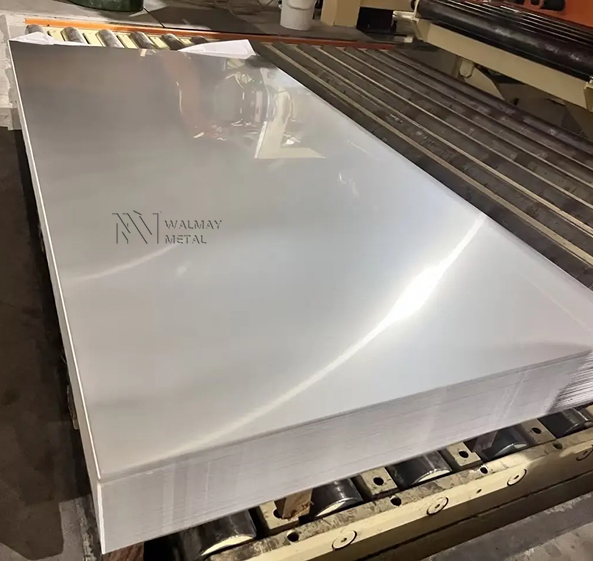

Stainless Steel Plates on Storage Rack

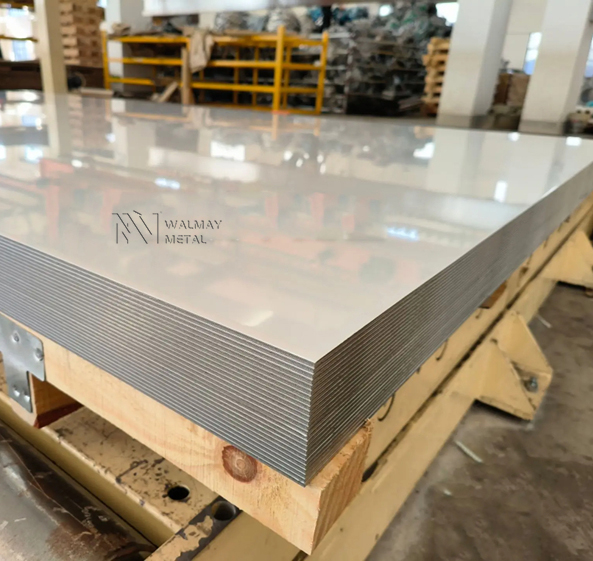

Palletized Stainless Steel Plates

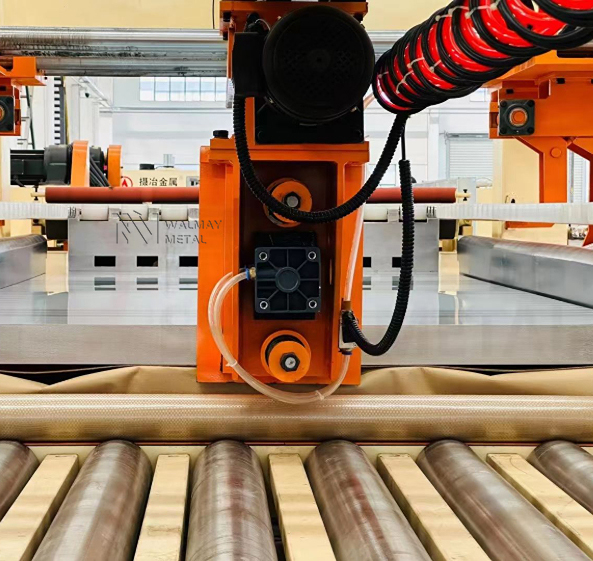

Stainless Steel Plate Rolling Line
Precision Thickness Inspection of Stainless Steel Plate
Forklift Loading Stainless Steel Plates for Shipment
Specification: 5mm × 1219mm
Performance: 1100℃ service for 5 years, oxide layer thickness ≤0.1mm
Case: Baowu Steel annealing furnace lining
Specification: 8mm × 1500mm
Performance: Resistant to flue gas corrosion (SO₂ content 2000ppm)
Case: Huaneng Power Plant coal-fired boiler exhaust pipeline
Recommended GTAW (TIG) with ER310S filler; no preheating required, no post-weld heat treatment needed.
Avoid prolonged service between 427–816℃ to prevent σ-phase precipitation and embrittlement.
Walmay will help match the right stainless product form and specification for your application, confirm quantities and packing needs, and provide requested documents based on order requirements.
